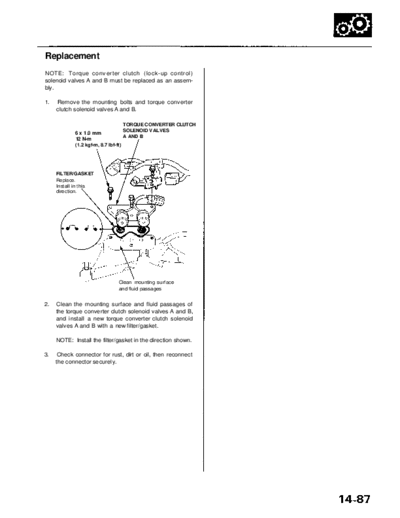

            Main Menu                  Table of Contents




Replacement
NOTE: Torque converter clutch (lock-up control)
solenoid valves A and B must be replaced as an assem-
bly.

1.   Remove the mounting bolts and torque converter
     clutch solenoid valves A and B.

                                    TORQUE CONVERTER CLUTCH
            6 x 1.0 mm              SOLENOID VALVES
            12 N-m                  A AND B
            (1.2 kgf-m, 8.7 Ibf-ft)




     FILTER/GASKET
     Replace.
     Install in this
     direction.




                              Clean mounting surface
                              and fluid passages


2.   Clean the mounting surface and fluid passages of
     the torque converter clutch solenoid valves A and B,
     and install a new torque converter clutch solenoid
     valves A and B with a new filter/gasket.

     NOTE: Install the filter/gasket in the direction shown.

3.    Check connector for rust, dirt or oil, then reconnect
     the connector securely.
