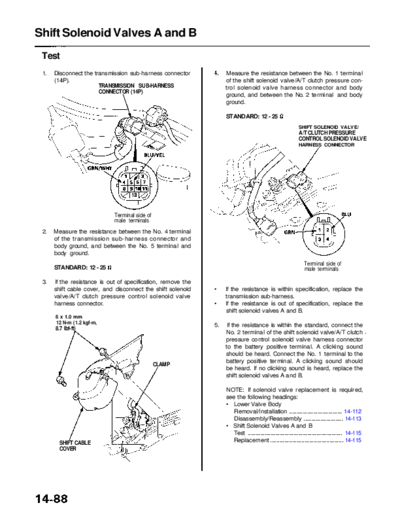

Image preview - the first page of the document



>> Download RL9604S14088A documenatation <<

Text preview - extract from the document

                Main Menu               Table of Contents

Shift Solenoid Valves A and B
 Test
 1.   Disconnect the transmission sub-harness connector            Measure the resistance between the No. 1 terminal
      (14P).                                                       of the shift solenoid valve/A/T clutch pressure con-
                       TRANSMISSION SUB-HARNESS                    trol solenoid valve harness connector and body
                       CONNECTOR (14P)
                                                                   ground, and between the No. 2 terminal and body
                                                                   ground.

                                                                   STANDARD: 12 - 25
                                                                                                           SHIFT SOLENOID VALVE/
                                                                                                           A/T CLUTCH PRESSURE
                                                                                                           CONTROL SOLENOID VALVE
                                                                                                           HARNESS CONNECTOR




                             Terminal side of
                             male terminals
 2.   Measure the resistance between the No. 4 terminal
      of the transmission sub-harness connector and
      body ground, and between the No. 5 terminal and
      body ground.
                                                                                                              Terminal side of
      STANDARD: 12 - 25                                                                                       male terminals

 3.   If the resistance is out of specification, remove the
      shift cable cover, and disconnect the shift solenoid
