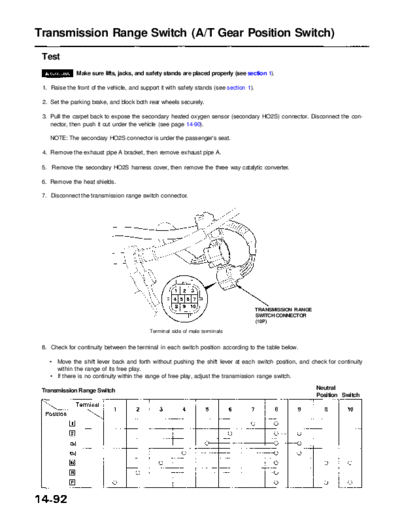

             Main Menu                  Table of Contents

Transmission Range Switch (A/T Gear Position Switch)
 Test
              Make sure lifts, jacks, and safety stands are placed properly (see section 1).

 1. Raise the front of the vehicle, and support it with safety stands (see section 1).

 2. Set the parking brake, and block both rear wheels securely.

 3. Pull the carpet back to expose the secondary heated oxygen sensor (secondary HO2S) connector. Disconnect the con-
    nector, then push it out under the vehicle (see page 14-90).

    NOTE: The secondary HO2S connector is under the passenger's seat.

 4. Remove the exhaust pipe A bracket, then remove exhaust pipe A.

 5. Remove the secondary HO2S harness cover, then remove the three way catalytic converter.

 6. Remove the heat shields.

 7. Disconnect the transmission range switch connector.




                                                                                         TRANSMISSION RANGE
                                                                                         SWITCH CONNECTOR
                                                                                         (10P)
                                            Terminal side of male terminals


 8. Check for continuity between the terminal in each switch position according to the table below.
