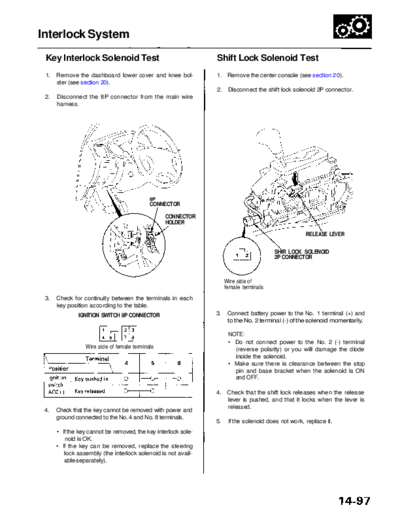

Image preview - the first page of the document



>> Download RL9604S14097A documenatation <<

Text preview - extract from the document

            Main Menu                   Table of Contents


Interlock System
 Key Interlock Solenoid Test                                    Shift Lock Solenoid Test
 1.   Remove the dashboard lower cover and knee bol-            1. Remove the center console (see section 20).
      ster (see section 20).
                                                                2.    Disconnect the shift lock solenoid 2P connector.
 2.   Disconnect the 8P connector from the main wire
      harness.




                                            8P
                                            CONNECTOR

                                                  CONNECTOR
                                                  HOLDER

                                                                                                     RELEASE LEVER


                                                                                        SHIR LOCK SOLENOID
                                                                                        2P CONNECTOR



                                                                     Wire side of
                                                                     female terminals
 3.   Check for continuity between the terminals in each
      key position according to the table.
              IGNITION SWITCH 8P CONNECTOR                      3.    Connect battery power to the No. 1 terminal (+) and
                                                                      to the No. 2 terminal (-) of the solenoid momentarily.

                                                                      NOTE:
