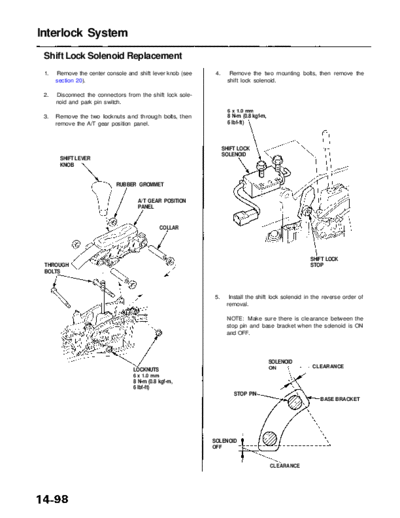

            Main Menu                Table of Contents


Interlock System
 Shift Lock Solenoid Replacement
 1.   Remove the center console and shift lever knob (see    4.      Remove the two mounting bolts, then remove the
      section 20).                                                  shift lock solenoid.

 2.   Disconnect the connectors from the shift lock sole-
      noid and park pin switch.
                                                                    6 x 1.0 mm
 3.   Remove the two locknuts and through bolts, then               8 N-m (0.8 kgf-m
      remove the A/T gear position panel.                           6 Ibf-ft)



                                                                  SHIFT LOCK
                                                                  SOLENOID
       SHIFT LEVER
       KNOB


                            RUBBER GROMMET

                                    A/T GEAR POSITION
                                    PANEL


                                               COLLAR




                                                                                                     SHIFT LOCK
 THROUGH                                                                                             STOP
 BOLTS



                                                            5.      Install the shift lock solenoid in the reverse order of
                                                                   removal.

                                                                   NOTE: Make sure there is clearance between the
                                                                   stop pin and base bracket when the solenoid is ON
                                                                   and OFF.




                                                                                       SOLENOID
                                                                                       ON             CLEARANCE
                                   LOCKNUTS
                                  6 x 1.0 mm
                                  8 N-m (0.8 kgf-m,
                                  6 Ibf-ft)
                                                                      STOP PIN
                                                                                                         BASE BRACKET




                                                            SOLENOID
                                                            OFF


                                                                                       CLEARANCE
