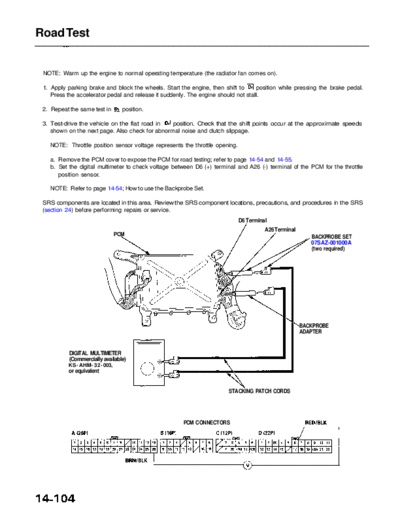

Text preview - extract from the document

             Main Menu                    Table of Contents

Road Test


 NOTE: Warm up the engine to normal operating temperature (the radiator fan comes on).

 1. Apply parking brake and block the wheels. Start the engine, then shift to       position while pressing the brake pedal.
    Press the accelerator pedal and release it suddenly. The engine should not stall.

 2. Repeat the same test in        position.

 3. Test-drive the vehicle on the flat road in   position. Check that the shift points occur at the approximate speeds
    shown on the next page. Also check for abnormal noise and clutch slippage.

   NOTE: Throttle position sensor voltage represents the throttle opening.

   a. Remove the PCM cover to expose the PCM for road testing; refer to page 14-54 and 14-55.
   b. Set the digital multimeter to check voltage between D6 (+) terminal and A26 (-) terminal of the PCM for the throttle
      position sensor.

    NOTE: Refer to page 14-54; How to use the Backprobe Set.

 SRS components are located in this area. Review the SRS component locations, precautions, and procedures in the SRS
 (section 24) before performing repairs or service.
                                                                               D6 Terminal
                                                                                         A26 Terminal
                                 PCM
                                                                                                           BACKPROBE SET
                                                                                                           07SAZ-001000A
                                                                                                           (two required)




                                                                                                        BACKPROBE
                                                                                                        ADAPTER


           DIGITAL MULTIMETER
           (Commercially available)
          KS - AHM - 32 - 003,
          or equivalent


                                                                           STACKING PATCH CORDS




                                                              PCM CONNECTORS
               Main Menu               Table of Contents




   and      Positions

Upshift




Downshift




Lock-up




NOTE:
