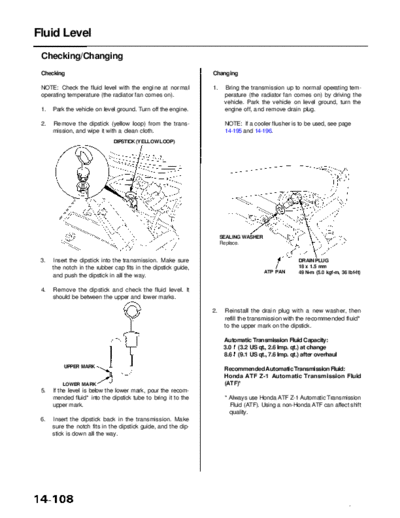

              Main Menu                  Table of Contents

Fluid Level
 Checking/Changing
 Checking                                                       Changing

 NOTE: Check the fluid level with the engine at normal          1.    Bring the transmission up to normal operating tem-
 operating temperature (the radiator fan comes on).                   perature (the radiator fan comes on) by driving the
                                                                      vehicle. Park the vehicle on level ground, turn the
 1.   Park the vehicle on level ground. Turn off the engine.          engine off, and remove drain plug.

 2.   Remove the dipstick (yellow loop) from the trans-               NOTE: If a cooler flusher is to be used, see page
      mission, and wipe it with a clean cloth.                        14-195 and 14-196.
                              DIPSTICK (YELLOW LOOP)




                                                                     SEALING WASHER
                                                                     Replace.


 3.   Insert the dipstick into the transmission. Make sure                                         DRAIN PLUG
      the notch in the rubber cap fits in the dipstick guide,                                      18 x 1.5 mm
                                                                                      ATP PAN      49 N-m (5.0 kgf-m, 36 Ibf-ft)
      and push the dipstick in all the way.

 4.   Remove the dipstick and check the fluid level. It
      should be between the upper and lower marks.

                                                                2.    Reinstall the drain plug with a new washer, then
                                                                      refill the transmission with the recommended fluid*
                                                                      to the upper mark on the dipstick.

                                                                      Automatic Transmission Fluid Capacity:
                                                                      3.0 (3.2 US qt., 2.6 Imp. qt.) at change
                                                                      8.6 (9.1 US qt., 7.6 Imp. qt.) after overhaul

          UPPER MARK                                                  Recommended Automatic Transmission Fluid:
                                                                      Honda ATF Z-1 Automatic Transmission Fluid
          LOWER MARK                                                  (ATF)*
 5.   If the level is below the lower mark, pour the recom-
      mended fluid* into the dipstick tube to bring it to the         * Always use Honda ATF Z-1 Automatic Transmission
      upper mark.                                                       Fluid (ATF). Using a non-Honda ATF can affect shift
                                                                        quality.
 6.   Insert the dipstick back in the transmission. Make
      sure the notch fits in the dipstick guide, and the dip-
      stick is down all the way.
