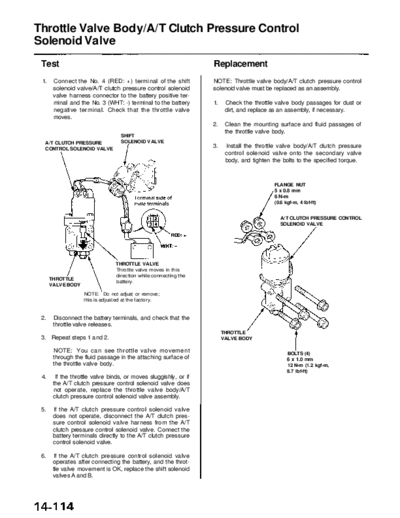

Image preview - the first page of the document



>> Download RL9604S14114A documenatation <<

Text preview - extract from the document

               Main Menu                   Table of Contents

Throttle Valve Body/A/T Clutch Pressure Control
Solenoid Valve
 Test                                                             Replacement
 1.    Connect the No. 4 (RED: +) terminal of the shift           NOTE: Throttle valve body/A/T clutch pressure control
       solenoid valve/A/T clutch pressure control solenoid        solenoid valve must be replaced as an assembly.
       valve harness connector to the battery positive ter-
       minal and the No. 3 (WHT: -) terminal to the battery       1.    Check the throttle valve body passages for dust or
       negative terminal. Check that the throttle valve                 dirt, and replace as an assembly, if necessary.
       moves.
                                                                  2.    Clean the mounting surface and fluid passages of
                                                                        the throttle valve body.
                                  SHIFT
  A/T CLUTCH PRESSURE             SOLENOID VALVE
  CONTROL SOLENOID VALVE
                                                                  3.    Install the throttle valve body/A/T clutch pressure
                                                                        control solenoid valve onto the secondary valve
                                                                        body, and tighten the bolts to the specified torque.



                                                                                          FLANGE NUT
                                                                                          5 x 0.8 mm
                                                                                          6 N-m
                                                                                          (0.6 kgf-m, 4 Ibf-ft)


                                                                                             A/T CLUTCH PRESSURE CONTROL
                                                                                             SOLENOID VALVE




                                THROTTLE VALVE
                                Throttle valve moves in this
                                direction while connecting the
      THROTTLE
                                battery.
      VALVE BODY
                   NOTE: Do not adjust or remove;
                   this is adjusted at the factory.


 2.    Disconnect the battery terminals, and check that the
       throttle valve releases.
                                                                       THROTTLE
 3. Repeat steps 1 and 2.                                              VALVE BODY

       NOTE: You can see throttle valve movement                                                BOLTS (4)
       through the fluid passage in the attaching surface of                                    6 x 1.0 mm
       the throttle valve body.                                                                 12 N-m (1.2 kgf-m,
                                                                                                8.7 Ibf-ft)
 4.     If the throttle valve binds, or moves sluggishly, or if
       the A/T clutch pressure control solenoid valve does
       not operate, replace the throttle valve body/A/T
       clutch pressure control solenoid valve assembly.

 5.    If the A/T clutch pressure control solenoid valve
       does not operate, disconnect the A/T clutch pres-
       sure control solenoid valve harness from the A/T
       clutch pressure control solenoid valve. Connect the
       battery terminals directly to the A/T clutch pressure
       control solenoid valve.

 6.     If the A/T clutch pressure control solenoid valve
       operates after connecting the battery, and the throt-
       tle valve movement is OK, replace the shift solenoid
       valves A and B.
