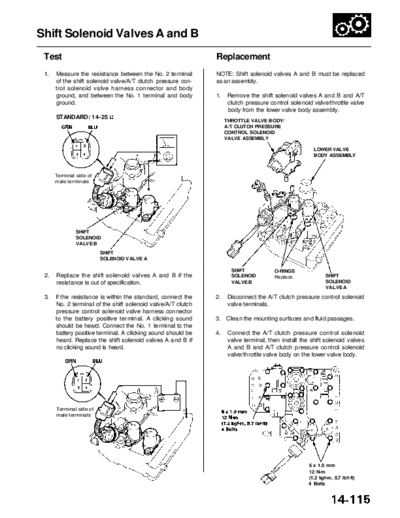

Image preview - the first page of the document



>> Download RL9604S14115A documenatation <<

Text preview - extract from the document

              Main Menu                Table of Contents

Shift Solenoid Valves A and B
 Test                                                         Replacement
      Measure the resistance between the No. 2 terminal       NOTE: Shift solenoid valves A and B must be replaced
      of the shift solenoid valve/A/T clutch pressure con-    as an assembly.
      trol solenoid valve harness connector and body
      ground, and between the No. 1 terminal and body         1.   Remove the shift solenoid valves A and B and A/T
      ground.                                                      clutch pressure control solenoid valve/throttle valve
                                                                   body from the lower valve body assembly.
      STANDARD: 14-25
                                                                   THROTTLE VALVE BODY/
                                                                   A/T CLUTCH PRESSURE
                                                                   CONTROL SOLENOID
                                                                   VALVE ASSEMBLY

                                                                                                      LOWER VALVE
                                                                                                      BODY ASSEMBLY



      Terminal side of
      male terminals




               SHIFT
               SOLENOID
               VALVE B
                         SHIFT
                         SOLENOID VALVE A

                                                                     SHIFT            O-RINGS
 2.   Replace the shift solenoid valves A and B if the               SOLENOID         Replace.              SHIFT
      resistance is out of specification.                            VALVE B                                SOLENOID
                                                                                                            VALVE A

 3.   If the resistance is within the standard, connect the   2.    Disconnect the A/T clutch pressure control solenoid
      No. 2 terminal of the shift solenoid valve/A/T clutch         valve terminals.
      pressure control solenoid valve harness connector
      to the battery positive terminal. A clicking sound      3.   Clean the mounting surfaces and fluid passages.
      should be heard. Connect the No. 1 terminal to the
      battery positive terminal. A clicking sound should be   4.    Connect the A/T clutch pressure control solenoid
      heard. Replace the shift solenoid valves A and B if           valve terminal, then install the shift solenoid valves
      no clicking sound is heard.                                   A and B and A/T clutch pressure control solenoid
                                                                    valve/throttle valve body on the lower valve body.




      Terminal side of
      male terminals




                                                                                                    6 x 1.0 mm
                                                                                                    12 N-m
                                                                                                    (1.2 kgf-m, 8.7 Ibf-ft)
                                                                                                    4 Bolts
