       Main Menu     Table of Contents

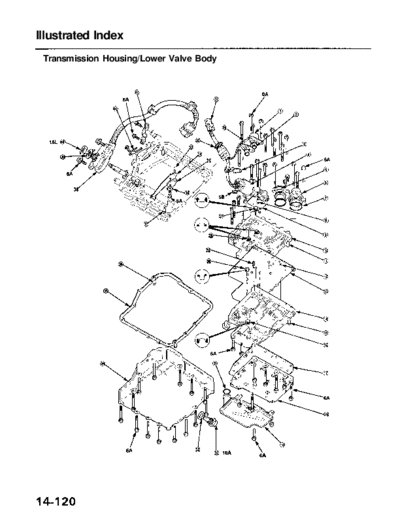

Illustrated Index
 Transmission Housing/Lower Valve Body
           Main Menu              Table of Contents




  SHIFT SOLENOID VALVE A
  O-RING Replace.
  HARNESS CLAMP
  A/T CLUTCH PRESSURE CONTROL SOLENOID VALVE/THROTTLE
  VALVE BODY ASSEMBLY
  1ST ACCUMULATOR COVER
  2ND ACCUMULATOR COVER
  O-RING Replace.
  DOWEL PINS
  THROTTLE SEPARATOR PLATE
  SECONDARY VALVE BODY
  DOWEL PINS
  CHECK BALLS
  MAIN SEPARATOR PLATE
  MAIN VALVE BODY
  DOWEL PINS
  FILTER Replace.
  ATP PASSAGE SEPARATOR PLATE
  ATF PASSAGE
  ATP STRAINER
  SHIFT SOLENOID VALVE B
  SHIFT SOLENOID VALVE/A/T CLUTCH PRESSURE CONTROL
  SOLENOID VALVE HARNESS
  O-RING Replace.
  DETENT SPRING PIN
  DETENT SPRING
  DETENT SPRING PLATE
  LOCK WASHER Replace.
  FILTER Replace.
  FILTERS Replace.
  CHOKE
  FILTER Replace.
  O-RING Replace.
  DRAIN PLUG, 18 x 1.5 mm
  SEALING WASHER Replace.
  ATF PAN
  ATF PAN GASKET Replace.
  DOWEL PINS
  DOWEL PINS
  TRANSMISSION RANGE SWITCH (A/T GEAR POSITION SWITCH)
  LOCK WASHER Replace.
  LOCKNUT
  HARNESS CONNECTOR STOP
  SHIFT CABLE HOLDER BASE



TORQUE SPECIFICATIONS




                                                         A/T gear position switch locknut
                                                         Drain plug
