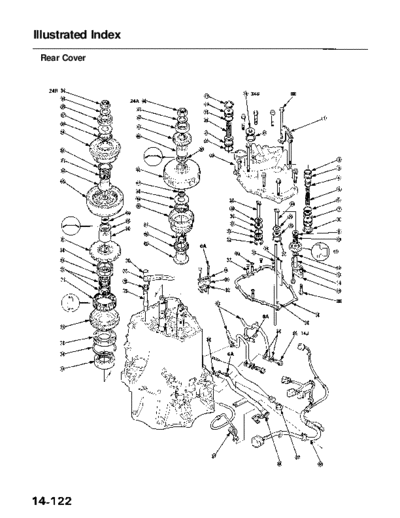

Image preview - the first page of the document



>> Download RL9604S14122A documenatation <<

Text preview - extract from the document

        Main Menu   Table of Contents


Illustrated Index
 Rear Cover
          Main Menu            Table of Contents




  TRANSMISSION RANGE SWITCH HARNESS BRACKET        O-RINGS Replace.
  O-RING Replace.                                  THRUST WASHER, 29 mm
  REVERSE ACCUMULATOR PISTON                       THRUST NEEDLE BEARING
  O-RING Replace.                                  MAINSHAFT 2ND GEAR
  REVERSE ACCUMULATOR SPRING                       NEEDLE BEARING
  O-RINGS Replace.                                 THRUST NEEDLE BEARING
  REVERSE ACCUMULATOR SLEEVE                        MAINSHAFT 2ND GEAR COLLAR
  SNAP RING                                        COUNTERSHAFT LOCKNUT, 24 x 1.25 mm
  THRUST WASHER, 14 x 30 mm                        Replace.
  NEEDLE BEARINGS                                  WASHER, 24 mm Replace.
  REVERSE IDLER GEAR                               BALL BEARING
  THRUST WASHER, 14 x 25 mm                        THRUST WASHER, 25 mm
  REVERSE IDLER GEAR SHAFT                         THRUST NEEDLE BEARING
  DOWEL PIN                                        COUNTERSHAFT REVERSE GEAR
  REVERSE IDLER GEAR SHAFT HOLDER                  THRUST NEEDLE BEARING
  SEALING BOLT, 34 x 1.5 mm                        NEEDLE BEARING
  SNAP RING                                        COUNTERSHAFT REVERSE GEAR COLLAR
  1ST-HOLD ACCUMULATOR SLEEVE                      REVERSE CLUTCH ASSEMBLY
  O-RING Replace.                                  O-RINGS Replace.
  1ST-HOLD ACCUMULATOR SPRING                      CONICAL SPRING WASHER, 29 mm
  1ST-HOLD ACCUMULATOR PISTON                      Replace.
  O-RING Replace.                                  REVERSE CLUTCH DISTANCE COLLAR
  REAR COVER                                       PARK GEAR
  2ND CLUTCH FEED PIPE                             THRUST NEEDLE BEARING
  O-RINGS Replace.                                 THRUST WASHER, 45.5 x 60 mm Selective part
  FEED PIPE GUIDE                                  NEEDLE BEARINGS
  SNAP RING                                        2ND GEAR ONE-WAY CLUTCH
  REVERSE CLUTCH FEED PIPE                         COUNTERSHAFT 2ND GEAR
  O-RINGS Replace.                                 BALL BEARING
  FEED PIPE GUIDE                                  SNAP RING
  O-RING Replace.                                  ONE-WAY CLUTCH HUB
  ATF FEED GUIDE                                   PARK PAWL SHAFT SLEEVE
  SNAP RING                                        PARK PAWL
  ATF FEED PIPE                                    PARK PAWL SPRING
  ATF FEED PIPE                                    PARK PAWL SHAFT
  O-RING Replace.                                  LOCK PLATE Replace.
  ATF FEED PIPE                                    PARK ROD HOLDER
  REAR COVER GASKET Replace.                       PARK ROD GUIDE
  DOWEL PINS                                       ATF COOLER LINES
  MAINSHAFT LOCKNUT, 24 x 1.25 mm                  SEALING WASHERS Replace.
  Replace.                                         LINE BOLT
  WASHER, 24 mm Replace.                           TRANSMISSION SUB-HARNESS
  BALL BEARING                                     ATF DIPSTICK
  MAINSHAFT REVERSE GEAR                           ATF DIPSTICK TUBE
  MAINSHAFT REVERSE GEAR DISTANCE COLLAR           BREATHER TUBE/HOSE
  CONICAL SPRING WASHER, 28 mm                     O-RING Replace.
  Replace.                                         WASHER, 34 mm Replace.
  2ND CLUTCH ASSEMBLY                              '96 (M5DA - 1026239-) - 01 models




TORQUE SPECIFICATIONS
