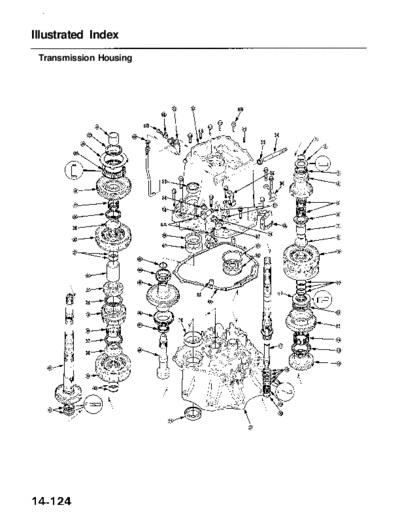

RL9604S14124A


>> Download RL9604S14124A documenatation <<

Text preview - extract from the document
        Main Menu       Table of Contents


Illustrated Index
 Transmission Housing
          Main Menu                Table of Contents




  SNAP RING                                            SEALING RINGS, 42 mm
  THRUST WASHER                                        SET RING Replace.
  THRUST NEEDLE BEARING                                TAPERED ROLLER BEARING
  MAINSHAFT 1ST GEAR                                   SECONDARY DRIVEN GEAR SHAFT
  NEEDLE BEARINGS                                      TAPERED ROLLER BEARING
  THRUST NEEDLE BEARING                                SECONDARY DRIVEN GEAR SHAFT OIL SEAL
  MAINSHAFT 1ST GEAR DISTANCE COLLAR                   Replace.
  MAINSHAFT 1ST GEAR COLLAR                            EXTENSION SHAFT
  1ST/4TH CLUTCH ASSEMBLY                              PARK ROD
  O-RINGS Replace.                                     LOCK WASHER Replace.
  THRUST WASHER, 43 x 74 mm Selective part             DETENT LEVER
  THRUST NEEDLE BEARING                                TRANSMISSION HOUSING
  MAINSHAFT 4TH GEAR                                   TRANSMISSION HOUSING OIL SEAL Replace.
  NEEDLE BEARING                                       CONTROL SHAFT
  THRUST NEEDLE BEARING                                SPEED SENSOR CONNECTOR BRACKET
  MAINSHAFT 3RD GEAR                                   TRANSMISSION HANGER
  MAINSHAFT                                            O-RINGS Replace.
  SEALING RINGS, 37 mm Replace.                        HARNESS CLAMP BRACKET
  NEEDLE BEARING                                       MAINSHAFT SPEED SENSOR WASHER
  SET RING                                             MAINSHAFT SPEED SENSOR
  TORQUE CONVERTER HOUSING                             SNAP RING
  COUNTERSHAFT 2ND GEAR COLLAR                         MAINSHAFT TRANSMISSION HOUSING BEARING
  THRUST NEEDLE BEARING                                TRANSMISSION HOUSING OIL SEAL Replace.
  SET PLATE                                            COUNTERSHAFT SPEED SENSOR WASHER
  1ST GEAR ONE-WAY CLUTCH                              COUNTERSHAFT SPEED SENSOR
  COUNTERSHAFT 1ST GEAR                                THRUST SHIM, 75 mm Selective part
  NEEDLE BEARING                                       TAPERED ROLLER BEARING OUTER RACE
  THRUST NEEDLE BEARING                                DOWEL PINS
  COUNTERSHAFT 1ST GEAR COLLAR                         TRANSMISSION HOUSING GASKET Replace.
  1ST-HOLD CLUTCH ASSEMBLY                             TAPERED ROLLER BEARING OUTER RACE
  O-RINGS Replace.                                     TORQUE CONVERTER HOUSING OIL SEAL Replace.
  1ST-HOLD CLUTCH DISTANCE COLLAR Selective part
  COUNTERSHAFT 4TH GEAR
  THRUST NEEDLE BEARING
  COUNTERSHAFT 3RD GEAR
  NEEDLE BEARING
  THRUST NEEDLE BEARING
  COUNTERSHAFT 3RD GEAR COLLAR
  3RD CLUTCH ASSEMBLY
  O-RINGS Replace.
  COUNTERSHAFT



TORQUE SPECIFICATIONS
