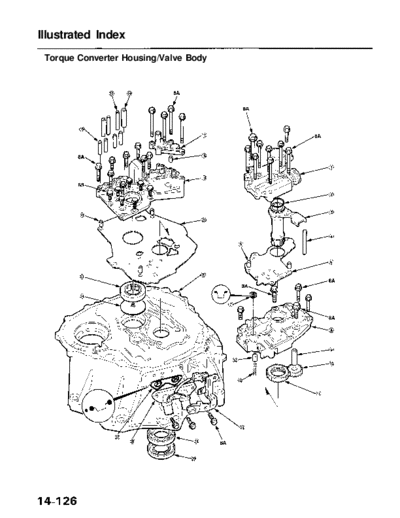

       Main Menu     Table of Contents


Illustrated Index
 Torque Converter Housing/Valve Body
           Main Menu             Table of Contents




  REGULATOR VALVE BODY
  O-RING Replace.
  STATOR SHAFT
  STOP SHAFT
  DOWEL PINS
  REGULATOR SEPARATOR PLATE
  FILTER Replace.
  ATP PUMP BODY
  ATF PUMP DRIVEN GEAR SHAFT
  ATF PUMP DRIVEN GEAR
  ATF PUMP DRIVE GEAR
  TORQUE CONVERTER CHECK VALVE
  TORQUE CONVERTER CHECK VALVE SPRING
  ATF FEED PIPE, 10 x 60 mm
  ATF FEED PIPES, 8 x 57.5 mm
  ATF FEED PIPES, 8 x 40 mm
  ACCUMULATOR COVER
  DOWEL PINS
  ACCUMULATOR BODY
  DOWEL PINS
  TORQUE CONVERTER HOUSING SEPARATOR PLATE
  TORQUE CONVERTER HOUSING
  TORQUE CONVERTER HOUSING COUNTERSHAFT
  BEARING
  ATF GUIDE PLATE
  TORQUE CONVERTER CLUTCH (LOCK-UP CONTROL)
  SOLENOID VALVE CONNECTOR BRACKET
  TORQUE CONVERTER CLUTCH (LOCK-UP CONTROL)
  SOLENOID VALVE ASSEMBLY
  TORQUE CONVERTER CLUTCH (LOCK-UP CONTROL)
  SOLENOID FILTER/GASKET
  Replace.
  TORQUE CONVERTER HOUSING MAINSHAFT
  BEARING
  MAINSHAFT OIL SEAL Replace.



TORQUE SPECIFICATIONS
