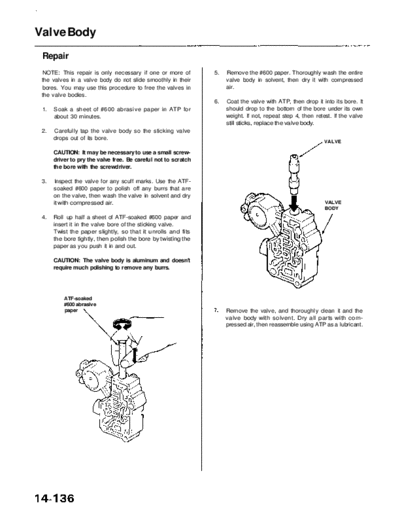

Image preview - the first page of the document



>> Download RL9604S14136A documenatation <<

Text preview - extract from the document

              Main Menu                 Table of Contents

Valve Body
 Repair
 NOTE: This repair is only necessary if one or more of          5.   Remove the #600 paper. Thoroughly wash the entire
 the valves in a valve body do not slide smoothly in their           valve body in solvent, then dry it with compressed
 bores. You may use this procedure to free the valves in             air.
 the valve bodies.
                                                                6.   Coat the valve with ATP, then drop it into its bore. It
 1.   Soak a sheet of #600 abrasive paper in ATP for                 should drop to the bottom of the bore under its own
      about 30 minutes.                                              weight. If not, repeat step 4, then retest. If the valve
                                                                     still sticks, replace the valve body.
 2.   Carefully tap the valve body so the sticking valve
      drops out of its bore.
                                                                                                             VALVE

      CAUTION: It may be necessary to use a small screw-
      driver to pry the valve free. Be careful not to scratch
      the bore with the screwdriver.

 3.   Inspect the valve for any scuff marks. Use the ATF-
      soaked #600 paper to polish off any burrs that are
      on the valve, then wash the valve in solvent and dry
      it with compressed air.                                                                                VALVE
                                                                                                             BODY
 4.   Roll up half a sheet of ATF-soaked #600 paper and
      insert it in the valve bore of the sticking valve.
      Twist the paper slightly, so that it unrolls and fits
      the bore tightly, then polish the bore by twisting the
      paper as you push it in and out.

      CAUTION: The valve body is aluminum and doesn't
      require much polishing to remove any burrs.




          ATF-soaked
          #600 abrasive
          paper                                                      Remove the valve, and thoroughly clean it and the
                                                                     valve body with solvent. Dry all parts with com-
                                                                     pressed air, then reassemble using ATP as a lubricant.
