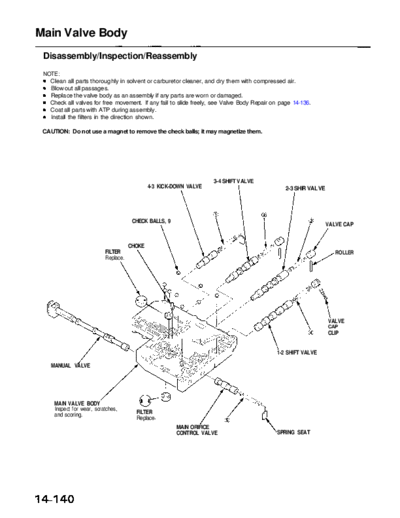

Image preview - the first page of the document
>> Download RL9604S14140A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Main Valve Body
Disassembly/Inspection/Reassembly
NOTE:
Clean all parts thoroughly in solvent or carburetor cleaner, and dry them with compressed air.
Blow out all passages.
Replace the valve body as an assembly if any parts are worn or damaged.
Check all valves for free movement. If any fail to slide freely, see Valve Body Repair on page 14-136.
Coat all parts with ATP during assembly.
Install the filters in the direction shown.
CAUTION: Do not use a magnet to remove the check balls; it may magnetize them.
3-4 SHIFT VALVE
4-3 KICK-DOWN VALVE 2-3 SHIR VALVE
CHECK BALLS, 9
VALVE CAP
CHOKE
FILTER ROLLER
Replace.
VALVE
CAP
CLIP
1-2 SHIFT VALVE
MANUAL VALVE
MAIN VALVE BODY
Inspect for wear, scratches, FILTER
and scoring. Replace
MAIN ORIFICE
CONTROL VALVE SPRING SEAT
Main Menu Table of Contents
NOTE: Do not position the check ball
in this hollow.
CHECK BALLS
CHECK BALLS
CHECK BALLS
FILTERS CHOKE
SPRING SPECIFICATIONS
Unit: mm (in)
