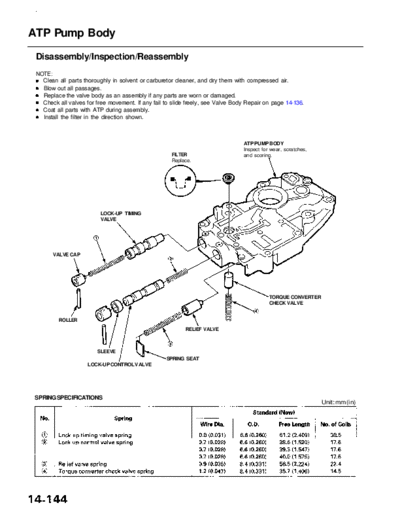

               Main Menu                 Table of Contents


ATP Pump Body
 Disassembly/Inspection/Reassembly
 NOTE:
   Clean all parts thoroughly in solvent or carburetor cleaner, and dry them with compressed air.
   Blow out all passages.
   Replace the valve body as an assembly if any parts are worn or damaged.
   Check all valves for free movement. If any fail to slide freely, see Valve Body Repair on page 14-136.
   Coat all parts with ATP during assembly.
   Install the filter in the direction shown.



                                                                                 ATP PUMP BODY
                                                                                 Inspect for wear, scratches,
                                                     FILTER                      and scoring.
                                                     Replace.




                           LOCK-UP TIMING
                           VALVE




       VALVE CAP




                                                                                            TORQUE CONVERTER
                                                                                            CHECK VALVE


          ROLLER
                                                             RELIEF VALVE



                        SLEEVE
                                                   SPRING SEAT
                     LOCK-UP CONTROL VALVE




 SPRING SPECIFICATIONS
                                                                                                                Unit: mm (in)
