             Main Menu                 Table of Contents

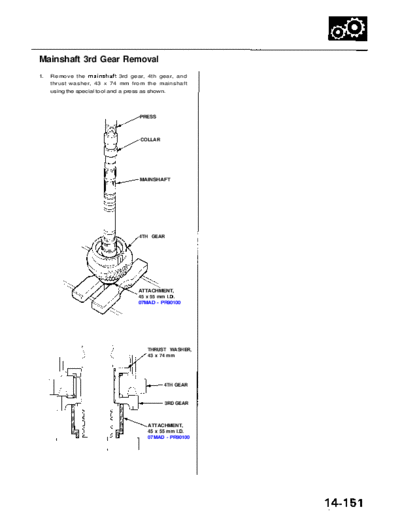

Mainshaft 3rd Gear Removal
1.   Remove the mainshaft 3rd gear, 4th gear, and
     thrust washer, 43 x 74 mm from the mainshaft
     using the special tool and a press as shown.




                                       PRESS



                                       COLLAR




                                       MAINSHAFT




                                      4TH GEAR




                                      ATTACHMENT,
                                      45 x 55 mm I.D.
                                      07MAD - PR90100




                                          THRUST WASHER,
                                          43 x 74 mm




                                                 4TH GEAR


                                                 3RD GEAR



                                          ATTACHMENT,
                                          45 x 55 mm I.D.
                                          07MAD - PR90100
