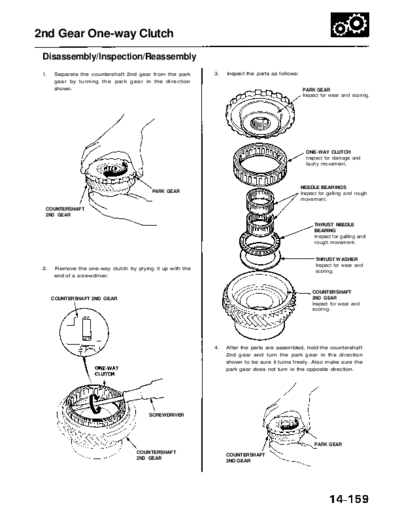

Image preview - the first page of the document
>> Download RL9604S14159A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
2nd Gear One-way Clutch
Disassembly/lnspection/Reassembly
1. Separate the countershaft 2nd gear from the park 3. Inspect the parts as follows:
gear by turning the park gear in the direction
shown. PARK GEAR
Inspect for wear and scoring.
ONE-WAY CLUTCH
Inspect for damage and
faulty movement.
NEEDLE BEARINGS
PARK GEAR Inspect for galling and rough
movement.
COUNTERSHAFT
2ND GEAR
THRUST NEEDLE
BEARING
Inspect for galling and
rough movement.
THRUST WASHER
Inspect for wear and
2. Remove the one-way clutch by prying it up with the scoring.
end of a screwdriver.
COUNTERSHAFT
COUNTERSHAFT 2ND GEAR 2ND GEAR
Inspect for wear and
scoring.
4. After the parts are assembled, hold the countershaft
2nd gear and turn the park gear in the direction
shown to be sure it turns freely. Also make sure the
park gear does not turn in the opposite direction.
SCREWDRIVER
PARK GEAR
COUNTERSHAFT COUNTERSHAFT
2ND GEAR
2ND GEAR
