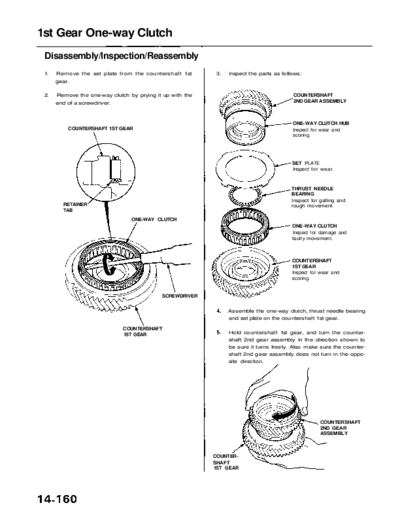

Image preview - the first page of the document
>> Download RL9604S14160A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
1st Gear One-way Clutch
Disassembly/lnspection/Reassembly
1. Remove the set plate from the countershaft 1st 3. Inspect the parts as follows:
gear.
2. Remove the one-way clutch by prying it up with the COUNTERSHAFT
end of a screwdriver. 2ND GEAR ASSEMBLY
ONE-WAY CLUTCH HUB
COUNTERSHAFT 1ST GEAR Inspect for wear and
scoring.
SET PLATE
Inspect for wear.
THRUST NEEDLE
BEARING
Inspect for galling and
RETAINER rough movement.
TAB
ONE-WAY CLUTCH
ONE-WAY CLUTCH
Inspect for damage and
faulty movement.
COUNTERSHAFT
1ST GEAR
Inspect for wear and
scoring.
SCREWDRIVER
Assemble the one-way clutch, thrust needle bearing
and set plate on the countershaft 1st gear.
COUNTERSHAFT
1ST GEAR Hold countershaft 1st gear, and turn the counter-
shaft 2nd gear assembly in the direction shown to
be sure it turns freely. Also make sure the counter-
shaft 2nd gear assembly does not turn in the oppo-
site direction.
COUNTERSHAFT
2ND GEAR
ASSEMBLY
COUNTER-
SHAFT
1ST GEAR
