Main Menu Table of Contents
Clutch
Illustrated Index

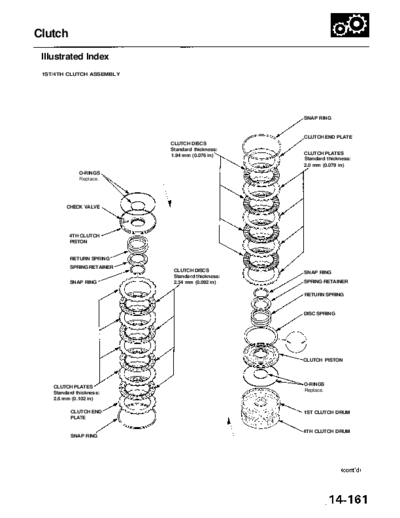

1ST/4TH CLUTCH ASSEMBLY
SNAP RING
CLUTCH END PLATE
CLUTCH DISCS
Standard thickness:
CLUTCH PLATES
1.94 mm (0.076 in)
Standard thickness:
2.0 mm (0.079 in)
O-RINGS
Replace.
CHECK VALVE
4TH CLUTCH
PISTON
RETURN SPRING
SPRING RETAINER
CLUTCH DISCS SNAP RING
Standard thickness:
SNAP RING 2.34 mm (0.092 in) SPRING RETAINER
RETURN SPRING
DISC SPRING
CLUTCH PISTON
CLUTCH PLATES O-RINGS
Standard thickness: Replace.
2.6 mm (0.102 in)
CLUTCH END 1ST CLUTCH DRUM
PLATE
4TH CLUTCH DRUM
SNAP RING
Main Menu Table of Contents
Clutch
Illustrated Index (cont'd)
2ND CLUTCH ASSEMBLY 3RD CLUTCH ASSEMBLY
CLUTCH DRUM
SNAP RING
CLUTCH DISCS
Standard thickness:
O-RINGS 2.34 mm (0.092 in)
Replace. CLUTCH END PLATE
CLUTCH PLATES
Standard thickness:
2.0 mm (0.079 in)
CLUTCH
CHECK VALVE PISTON
DISC SPRING
RETURN SPRING
SPRING RETAINER
SNAP RING CLUTCH DISCS
Standard thickness:
SNAP RING
1.94 mm (0.076 in)
SPRING RETAINER
RETURN SPRING
CLUTCH PISTON
O-RINGS
Replace.
CLUTCH PLATES
Standard thickness:
2.0 mm (0.079 in)
CLUTCH END CLUTCH DRUM
PLATE
SNAP RING
Main Menu Table of Contents
REVERSE CLUTCH ASSEMBLY 1ST-HOLD CLUTCH ASSEMBLY
SNAP RING SNAP RING
CLUTCH END CLUTCH END PLATE
PLATE
CLUTCH DISCS
CLUTCH PLATES Standard thickness:
Standard thickness: 1.94 mm (0.076 in)
2.0 mm (0.079 in) CLUTCH PLATES
Standard thickness:
2.0 mm (0.079 in)
CLUTCH DISCS
SNAP RING Standard thickness:
SNAP RING
1.94 mm (0.076 in)
SPRING RETAINER
SPRING RETAINER
RETURN SPRING
RETURN SPRING
DISC SPRING DISC SPRING
CLUTCH PISTON
CLUTCH PISTON
O-RINGS O-RINGS
Replace. Replace.
CLUTCH DRUM CLUTCH DRUM
