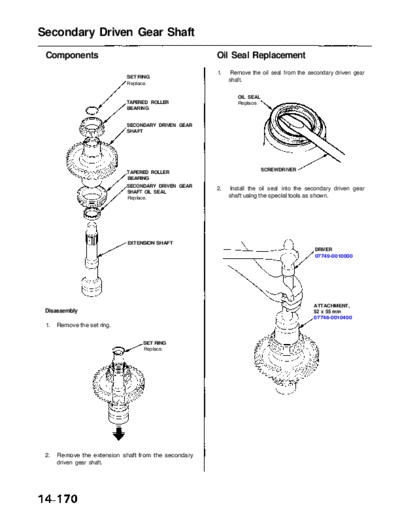

Image preview - the first page of the document



>> Download RL9604S14170A documenatation <<

Text preview - extract from the document

            Main Menu            Table of Contents

Secondary Driven Gear Shaft
 Components                                           Oil Seal Replacement
                                                      1.    Remove the oil seal from the secondary driven gear
                             SET RING
                             Replace.
                                                           shaft.

                                                              OIL SEAL
                             TAPERED ROLLER                   Replace.
                             BEARING


                             SECONDARY DRIVEN GEAR
                             SHAFT




                             TAPERED ROLLER                              SCREWDRIVER
                             BEARING
                             SECONDARY DRIVEN GEAR    2.    Install the oil seal into the secondary driven gear
                             SHAFT OIL SEAL
                             Replace.                      shaft using the special tools as shown.




                             EXTENSION SHAFT
                                                                                           DRIVER
                                                                                           07749-0010000




                                                                                           ATTACHMENT,
 Disassembly                                                                               52 x 55 mm
                                                                                           07746-0010400
 1.   Remove the set ring.


                                  SET RING
                                  Replace.




 2.   Remove the extension shaft from the secondary
      driven gear shaft.
