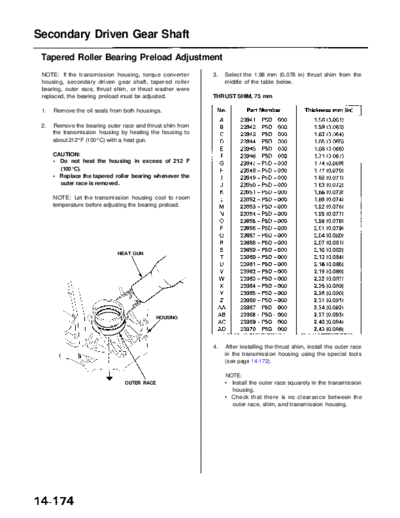

Image preview - the first page of the document
RL9604S14174A


>> Download RL9604S14174A documenatation <<

Text preview - extract from the document
              Main Menu               Table of Contents


Secondary Driven Gear Shaft
 Tapered Roller Bearing Preload Adjustment
 NOTE: If the transmission housing, torque converter       3.   Select the 1.98 mm (0.078 in) thrust shim from the
 housing, secondary driven gear shaft, tapered roller           middle of the table below.
 bearing, outer race, thrust shim, or thrust washer were
 replaced, the bearing preload must be adjusted.           THRUST SHIM, 75 mm

 1.   Remove the oil seals from both housings.

 2.   Remove the bearing outer race and thrust shim from
      the transmission housing by heating the housing to
      about 212
