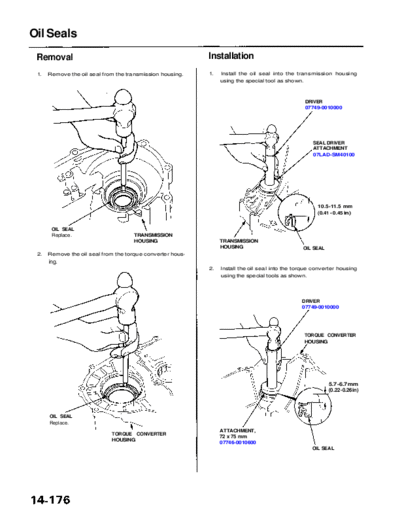

Image preview - the first page of the document
>> Download RL9604S14176A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Oil Seals
Removal Installation
1. Remove the oil seal from the transmission housing. 1. Install the oil seal into the transmission housing
using the special tool as shown.
DRIVER
07749-0010000
SEAL DRIVER
ATTACHMENT
07LAD-SM40100
10.5-11.5 mm
(0.41 - 0.45 in)
OIL SEAL
Replace. TRANSMISSION
HOUSING TRANSMISSION
HOUSING OIL SEAL
2. Remove the oil seal from the torque converter hous-
ing.
2. Install the oil seal into the torque converter housing
using the special tools as shown.
DRIVER
07749-0010000
TORQUE CONVERTER
HOUSING
5.7 - 6.7 mm
(0.22 - 0.26 in)
OIL SEAL
Replace.
ATTACHMENT,
TORQUE CONVERTER
72 x 75 mm
HOUSING
07746-0010600
OIL SEAL
