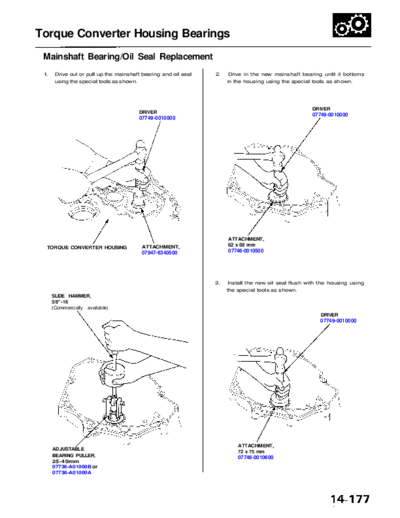

               Main Menu                   Table of Contents

Torque Converter Housing Bearings
 Mainshaft Bearing/Oil Seal Replacement
 1.    Drive out or pull up the mainshaft bearing and oil seal   2.    Drive in the new mainshaft bearing until it bottoms
       using the special tools as shown.                              in the housing using the special tools as shown.




                                                                                                       DRIVER
                                           DRIVER
                                                                                                       07749-0010000
                                           07749-0010000




                                                                      ATTACHMENT,
  TORQUE CONVERTER HOUSING                  ATTACHMENT,               62 x 68 mm
                                            07947-6340500             07746-0010500




                                                                 3.   Install the new oil seal flush with the housing using
                                                                      the special tools as shown.
      SLIDE HAMMER,
      3/8"-16
      (Commercially available)
                                                                                                          DRIVER
                                                                                                          07749-0010000




                                                                          ATTACHMENT,
      ADJUSTABLE                                                          72 x 75 mm
      BEARING PULLER,
                                                                          07746-0010600
      25-40 mm
      07736-A01000B or
      07736-A01000A
