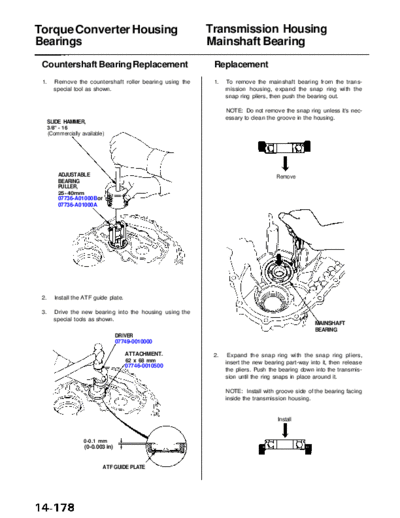

Image preview - the first page of the document



>> Download RL9604S14178A documenatation <<

Text preview - extract from the document

                  Main Menu                  Table of Contents

Torque Converter Housing                                         Transmission Housing
Bearings                                                         Mainshaft Bearing
 Countershaft Bearing Replacement                                 Replacement
 1.     Remove the countershaft roller bearing using the          1.   To remove the mainshaft bearing from the trans-
        special tool as shown.                                         mission housing, expand the snap ring with the
                                                                       snap ring pliers, then push the bearing out.

                                                                       NOTE: Do not remove the snap ring unless it's nec-
                                                                       essary to clean the groove in the housing.
      SLIDE HAMMER,
      3/8" - 16
      (Commercially available)




          ADJUSTABLE                                                                      Remove
          BEARING
          PULLER,
          25 - 40 mm
          07736-A01000B or
          07736-A01000A




 2.      Install the ATF guide plate.

 3.     Drive the new bearing into the housing using the
        special tools as shown.
                                                                                                         MAINSHAFT
                                                                                                         BEARING
                                    DRIVER
                                    07749-0010000

                                        ATTACHMENT.               2.    Expand the snap ring with the snap ring pliers,
                                        62 x 68 mm                     insert the new bearing part-way into it, then release
                                        07746-0010500
                                                                       the pliers. Push the bearing down into the transmis-
                                                                       sion until the ring snaps in place around it.

                                                                       NOTE: Install with groove side of the bearing facing
                                                                       inside the transmission housing.


                                                                                           Install


                     0-0.1 mm
                     (0-0.003 in)


                              ATF GUIDE PLATE
