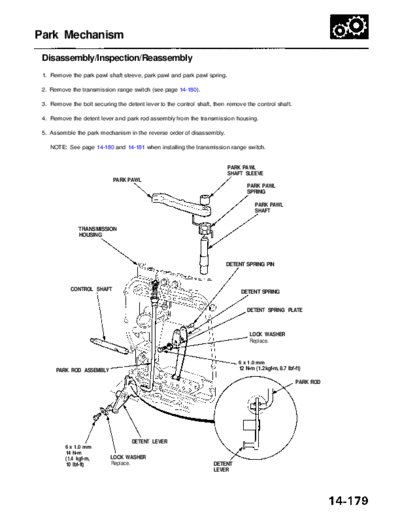

Image preview - the first page of the document



>> Download RL9604S14179A documenatation <<

Text preview - extract from the document

              Main Menu                Table of Contents


Park Mechanism
 Disassembly/lnspection/Reassembly
 1. Remove the park pawl shaft sleeve, park pawl and park pawl spring.

 2. Remove the transmission range switch (see page 14-180).

 3. Remove the bolt securing the detent lever to the control shaft, then remove the control shaft.

 4. Remove the detent lever and park rod assembly from the transmission housing.

 5. Assemble the park mechanism in the reverse order of disassembly.

    NOTE: See page 14-180 and 14-181 when installing the transmission range switch.


                                                                         PARK PAWL
                                                                         SHAFT SLEEVE
                            PARK PAWL
                                                                                PARK PAWL
                                                                                SPRING

                                                                                    PARK PAWL
                                                                                    SHAFT


               TRANSMISSION
               HOUSING




                                                                        DETENT SPRING PIN



            CONTROL SHAFT                                                     DETENT SPRING


                                                                                DETENT SPRING PLATE



                                                                                  LOCK WASHER
                                                                                  Replace.


                                                                             6 x 1.0 mm
      PARK ROD ASSEMBLY                                                      12 N-m (1.2 kgf-m, 8.7 Ibf-ft)

                                                                                                        PARK ROD




                                   DETENT LEVER
          6 x 1.0 mm
          14 N-m
          (1.4 kgf-m,      LOCK WASHER
          10 Ibf-ft)       Replace.                                DETENT
                                                                   LEVER
