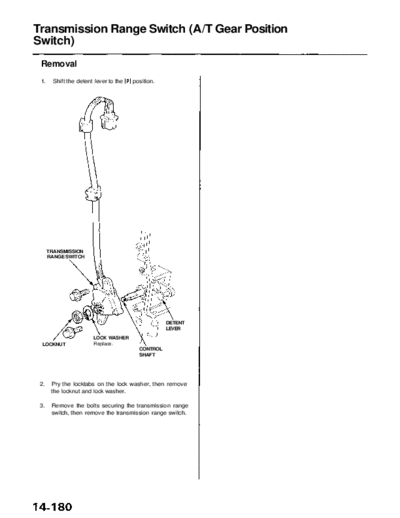

Image preview - the first page of the document
RL9604S14180A


>> Download RL9604S14180A documenatation <<

Text preview - extract from the document
               Main Menu                 Table of Contents

Transmission Range Switch (A/T Gear Position
Switch)
 Removal
 1.    Shift the detent lever to the   position.




      TRANSMISSION
      RANGE SWITCH




                                                   DETENT
                                                   LEVER
                       LOCK WASHER
  LOCKNUT              Replace.
                                         CONTROL
                                         SHAFT




 2.    Pry the locktabs on the lock washer, then remove
       the locknut and lock washer.

 3.    Remove the bolts securing the transmission range
       switch, then remove the transmission range switch.
