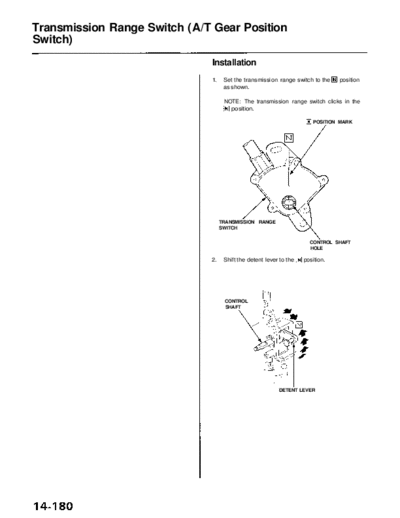

       Main Menu   Table of Contents

Transmission Range Switch (A/T Gear Position
Switch)
                                       Installation
                                       1.    Set the transmission range switch to the    position
                                             as shown.

                                             NOTE: The transmission range switch clicks in the
                                               position.

                                                                                 POSITION MARK




                                            TRANSMISSION RANGE
                                            SWITCH

                                                                               CONTROL SHAFT
                                                                               HOLE

                                       2.    Shift the detent lever to the   position.




                                             CONTROL
                                             SHAFT




                                                                   DETENT LEVER
              Main Menu                   Table of Contents




3.   Install the transmission range switch on the control
     shaft, then install the bolts loosely.




     TRANSMISSION
     RANGE SWITCH




                                        CONTROL
                                        SHAFT
                    6 x 1.0 mm
                    Tighten loosely.

4.   Install a new lock washer on the transmission range
     switch by aligning its projected tip with the  posi-
     tion mark on the transmission range switch as
     shown.

            POSITION       TRANSMISSION RANGE
          MARK             SWITCH

                                            6 x 1.0 mm
                                            12 N-m (1.2 kgf-m,
                                            8.7 Ibf-ft)




                                                    DETENT
                                                    LEVER
                    LOCK WASHER
                    Replace.

     LOCKNUT                           CONTROL
     12 N-m (1.2 kgf-m,                SHAFT
     8.7 Ibf-ft)
5.    Tighten the locknut while holding the detent lever in
     the     position, then bend the lock tabs against the
      locknut.

6.   Tighten the 6 mm bolts to the specified torque.
