Service Manuals, User Guides, Schematic Diagrams or docs for : . Car Manuals Acura 3.5RL 1996-2004 Approved srm RL9604S14188A

<< Back | Home

Most service manuals and schematics are PDF files, so You will need Adobre Acrobat Reader to view : Acrobat Download Some of the files are DjVu format. Readers and resources available here : DjVu Resources
For the compressed files, most common are zip and rar. Please, extract files with Your favorite compression software ( WinZip, WinRAR ... ) before viewing. If a document has multiple parts, You should download all, before extracting.
Good luck. Repair on Your own risk. Make sure You know what You are doing.

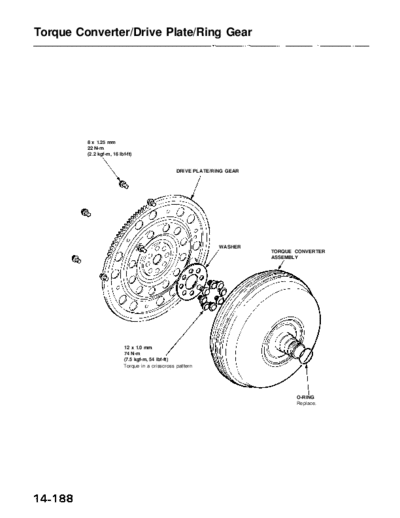

Image preview - the first page of the document



>> Download RL9604S14188A documenatation <<

Text preview - extract from the document

      Main Menu                    Table of Contents

Torque Converter/Drive Plate/Ring Gear




          8 x 1.25 mm
          22 N-m
          (2.2 kgf-m, 16 Ibf-ft)


                                                  DRIVE PLATE/RING GEAR




                                                                WASHER
                                                                          TORQUE CONVERTER
                                                                          ASSEMBLY




                            12 x 1.0 mm
                           74 N-m
                           (7.5 kgf-m, 54 Ibf-ft)
                           Torque in a crisscross pattern




                                                                                 O-RING
                                                                                 Replace.
