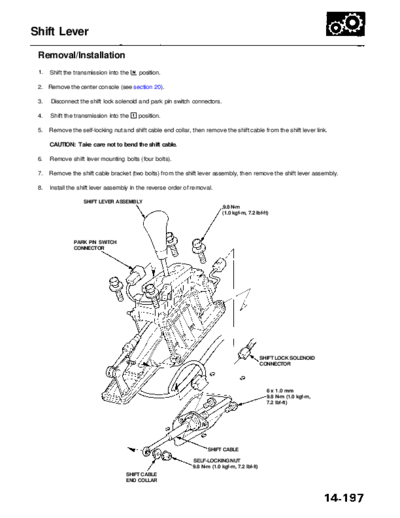

Image preview - the first page of the document



>> Download RL9604S14197A documenatation <<

Text preview - extract from the document

               Main Menu                  Table of Contents

Shift Lever
 Removal/Installation
 1.   Shift the transmission into the [HI position.

 2. Remove the center console (see section 20).

 3.   Disconnect the shift lock solenoid and park pin switch connectors.

 4.   Shift the transmission into the Q] position.

 5.   Remove the self-locking nut and shift cable end collar, then remove the shift cable from the shift lever link.

      CAUTION: Take care not to bend the shift cable.

 6.   Remove shift lever mounting bolts (four bolts).

 7.   Remove the shift cable bracket (two bolts) from the shift lever assembly, then remove the shift lever assembly.

 8.   Install the shift lever assembly in the reverse order of removal.

                   SHIFT LEVER ASSEMBLY                                      6 x 1.0mm
                                                                            ,9.8 N-m
                                                                             (1.0 kgf-m, 7.2 Ibf-ft)




               PARK PIN SWITCH
               CONNECTOR




                                                                                                 SHIFT LOCK SOLENOID
                                                                                                 CONNECTOR




                                                                                                   6 x 1.0 mm
                                                                                                   9.8 N-m (1.0 kgf-m,
                                                                                                   7.2 Ibf-ft)




                                                                      SHIFT CABLE

                                                               SELF-LOCKING NUT
                                                               9.8 N-m (1.0 kgf-m, 7.2 Ibf-ft)
                                     SHIFT CABLE
                                     END COLLAR
