             Main Menu                   Table of Contents

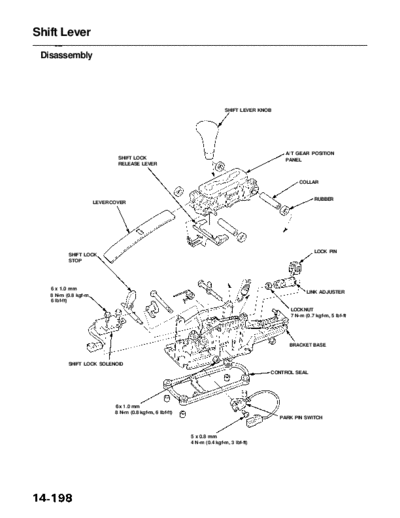

Shift Lever
 Disassembly




                                                                             SHIFT LEVER KNOB




                                                                                                  A/T GEAR POSITION
                               SHIFT LOCK                                                         PANEL
                               RELEASE LEVER


                                                                                                       COLLAR


                                                                                                              RUBBER
                       LEVER COVER




                                                                                                              LOCK PIN
          SHIFT LOCK
          STOP




   6 x 1.0 mm
                                                                                                          LINK ADJUSTER
   8 N-m (0.8 kgf-m,
   6 Ibf-ft)
                                                                                                   LOCKNUT
                                                                                                   7 N-m (0.7 kgf-m, 5 Ibf-ft)




                                                                                                   BRACKET BASE


          SHIFT LOCK SOLENOID
                                                                                            CONTROL SEAL




                              6x 1.0 mm
                              8 N-m (0.8 kgf-m, 6 Ibf-ft)
                                                                                                PARK PIN SWITCH


                                                             5 x 0.8 mm
                                                             4 N-m (0.4 kgf-m, 3 Ibf-ft)
