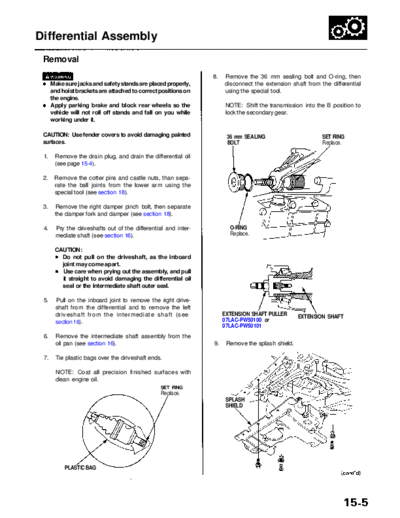

Image preview - the first page of the document

>> Download RL9604S15005A documenatation <<

Text preview - extract from the document

Main Menu Table of Contents

Differential Assembly
Removal
8. Remove the 36 mm sealing bolt and O-ring, then
Make sure jacks and safety stands are placed properly, disconnect the extension shaft from the differential
and hoist brackets are attached to correct positions on using the special tool.
the engine.
Apply parking brake and block rear wheels so the NOTE: Shift the transmission into the B position to
vehicle will not roll off stands and fall on you while lock the secondary gear.
working under it.

CAUTION: Use fender covers to avoid damaging painted 36 mm SEALING SET RING
surfaces. BOLT Replace.

1. Remove the drain plug, and drain the differential oil
(see page 15-4).

2. Remove the cotter pins and castle nuts, than sepa-
rate the ball joints from the lower arm using the
special tool (see section 18).

3. Remove the right damper pinch bolt, then separate
the damper fork and damper (see section 18).

4. Pry the driveshafts out of the differential and inter- O-RING
mediate shaft (see section 16). Replace.

CAUTION:
Do not pull on the driveshaft, as the inboard
joint may come apart.
Use care when prying out the assembly, and pull
it straight to avoid damaging the differential oil
seal or the intermediate shaft outer seal.

5. Pull on the inboard joint to remove the right drive-
shaft from the differential and to remove the left
driveshaft from the intermediate shaft (see EXTENSION SHAFT PULLER EXTENSION SHAFT
section 16). 07LAC-PW50100 or
07LAC-PW50101
6. Remove the intermediate shaft assembly from the
oil pan (see section 16). 9. Remove the splash shield.

7. Tie plastic bags over the driveshaft ends.

NOTE: Coat all precision finished surfaces with
clean engine oil.
SET RING
Replace.
SPLASH
SHIELD

PLASTIC BAG
Main Menu Table of Contents

Differential Assembly
Removal (cont'd)
10. Remove the lower plate, then reinstall the steering 12. Remove the air cleaner housing assembly.
gearbox mounting bolts.
AIR CLEANER
HOUSING ASSEMBLY
STEERING GEARBOX
MOUNTING BOLTS
59 N-m (6.0 kgf-m,
4.3 Ibf-ft)

LOWER PLATE

11. Disconnect the vehicle speed sensor (VSS) connec- 13. Remove the power steering pump.
tor, then remove the VSS/power steering speed
sensor. NOTE: Do not disconnect the hoses.

NOTE: Do not disconnect the hoses. POWER STEERING
PUMP

VSS CONNECTOR

VSS/POWER STEERING
SPEED SENSOR
Main Menu Table of Contents

14. Disconnect the breather tube from the clamp, then 16. Attach the chain hoist to the engine (see section 5).
remove the right exhaust manifold cover.
17. Remove the right and left engine mount bracket
nuts, then remove the right engine mount bracket.

ENGINE MOUNT
BRACKET NUT

CLAMP

BREATHER
TUBE

RIGHT ENGINE
RIGHT EXHAUST MOUNT BRACKET
MANIFOLD COVER

15. Remove the engine stop mount bracket bolts.

18. Remove the right engine mount.

ENGINE STOP
MOUNTS RIGHT ENGINE
MOUNT

ENGINE STOP
MOUNT BRACKET BOLTS
Main Menu Table of Contents

Differential Assembly
Removal (cont'd)
19. Remove the mounting bolts and 26 mm shim, then
remove the differential assembly.

O-RING
Replace.

DIFFERENTIAL
ASSEMBLY

26 mm SHIM
