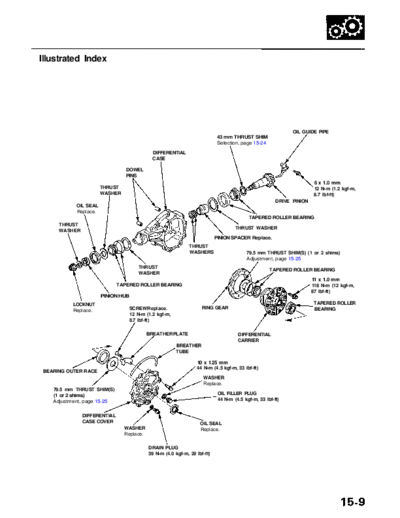

Main Menu Table of Contents
Illustrated Index
OIL GUIDE PIPE
43 mm THRUST SHIM
Selection, page 15-24
DIFFERENTIAL
CASE
DOWEL
PINS
6 x 1.0 mm
THRUST 12 N-m (1.2 kgf-m,
WASHER 8.7 Ibf-ft)
DRIVE PINION
OIL SEAL
Replace.
TAPERED ROLLER BEARING
THRUST
THRUST WASHER
WASHER
PINION SPACER Replace.
THRUST
WASHERS 79.5 mm THRUST SHIM(S) (1 or 2 shims)
Adjustment, page 15-25
THRUST
TAPERED ROLLER BEARING
WASHER
11 x 1.0 mm
TAPERED ROLLER BEARING 118 N-m (12 kgf-m,
87 Ibf-ft)
PINION HUB
LOCKNUT TAPERED ROLLER
SCREW Replace. RING GEAR BEARING
Replace.
12 N-m (1.2 kgf-m,
8.7 Ibf-ft)
BREATHER PLATE DIFFERENTIAL
CARRIER
BREATHER
TUBE
10 x 1.25 mm
44 N-m (4.5 kgf-m, 33 Ibf-ft)
BEARING OUTER RACE
WASHER
Replace.
79.5 mm THRUST SHIM(S)
(1 or 2 shims) OIL FILLER PLUG
Adjustment, page 15-25 44 N-m (4.5 kgf-m, 33 Ibf-ft)
DIFFERENTIAL
CASE COVER OIL SEAL
WASHER Replace.
Replace.
DRAIN PLUG
39 N-m (4.0 kgf-m, 29 Ibf-ft)
