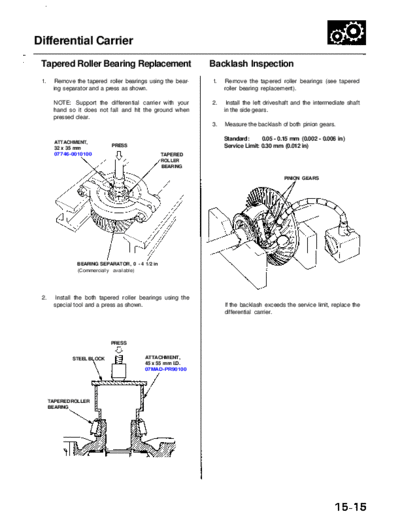

Image preview - the first page of the document



>> Download RL9604S15015A documenatation <<

Text preview - extract from the document

               Main Menu                Table of Contents




Differential Carrier
 Tapered Roller Bearing Replacement                           Backlash Inspection
 1.     Remove the tapered roller bearings using the bear-    1.   Remove the tapered roller bearings (see tapered
       ing separator and a press as shown.                         roller bearing replacement).

        NOTE: Support the differential carrier with your      2.    Install the left driveshaft and the intermediate shaft
        hand so it does not fall and hit the ground when           in the side gears.
        pressed clear.
                                                              3.   Measure the backlash of both pinion gears.

                                                                   Standard:      0.05 - 0.15 mm (0.002 - 0.006 in)
        ATTACHMENT,
                             PRESS                                 Service Limit: 0.30 mm (0.012 in)
        32 x 35 mm
        07746-0010100                             TAPERED
                                                  ROLLER
                                                  BEARING

                                                                                           PINION GEARS




                BEARING SEPARATOR, 0 - 4 1/2 in
                (Commercially available)




 2.      Install the both tapered roller bearings using the
        special tool and a press as shown.                         If the backlash exceeds the service limit, replace the
                                                                   differential carrier.




                             PRESS


               STEEL BLOCK                ATTACHMENT,
                                          45 x 55 mm I.D.
                                          07MAD-PR90100




      TAPERED ROLLER
      BEARING
