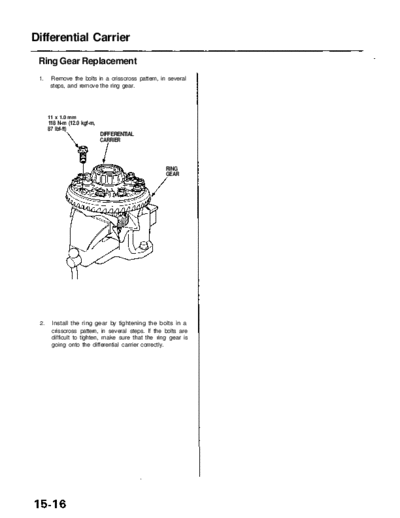

Image preview - the first page of the document
RL9604S15016A


>> Download RL9604S15016A documenatation <<

Text preview - extract from the document
                 Main Menu                  Table of Contents


Differential Carrier
 Ring Gear Replacement
 1.    Remove the bolts in a crisscross pattern, in several
       steps, and remove the ring gear.




      11 x 1.0 mm
      118 N-m (12.0 kgf-m,
      87 Ibf-ft)
                             DIFFERENTIAL
                             CARRIER



                                                      RING
                                                      GEAR




 2.    Install the ring gear by tightening the bolts in a
       crisscross pattern, in several steps. If the bolts are
       difficult to tighten, make sure that the ring gear is
       going onto the differential carrier correctly.
