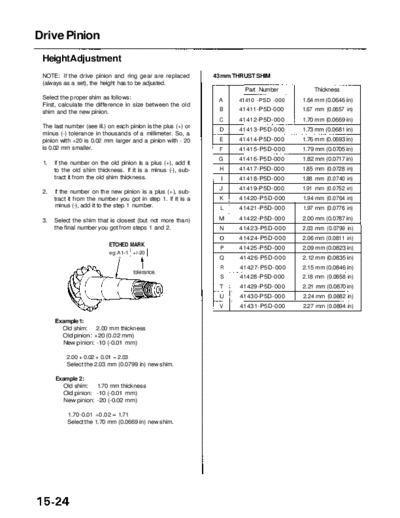

Image preview - the first page of the document
>> Download RL9604S15024A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Drive Pinion
Height Adjustment
NOTE: If the drive pinion and ring gear are replaced 43 mm THRUST SHIM
(always as a set), the height has to be adjusted.
Part Number Thickness
Select the proper shim as follows: A 41410 -PSD -000 1.64 mm (0.0646 in)
First, calculate the difference in size between the old
shim and the new pinion. B 41411-P5D-000 1.67 mm (0.0657 in)
C 41412-P5D-000 1.70 mm (0.0669 in)
The last number (see ill.) on each pinion is the plus (+) or D 41413-P5D-000 1.73 mm (0.0681 in)
minus (-) tolerance in thousands of a millimeter. So, a
pinion with +20 is 0.02 mm larger and a pinion with - 20 E 41414-P5D-000 1.76 mm (0.0693 in)
is 0.02 mm smaller. F 41415-P5D-000 1.79 mm (0.0705 in)
G 41416-P5D-000 1.82 mm (0.0717 in)
1. If the number on the old pinion is a plus (+), add it
to the old shim thickness. If it is a minus (-), sub- H 41417-P5D-000 1.85 mm (0.0728 in)
tract it from the old shim thickness. I 41418-P5D-000 1.88 mm (0.0740 in)
J 41419-P5D-000 1.91 mm (0.0752 in)
2. If the number on the new pinion is a plus (+), sub-
tract it from the number you got in step 1. If it is a K 41420-P5D-000 1.94 mm (0.0764 in)
minus (-), add it to the step 1 number. L 41421-P5D-000 1.97 mm (0.0776 in)
3. Select the shim that is closest (but not more than) M 41422-P5D-000 2.00 mm (0.0787 in)
the final number you got from steps 1 and 2. N 41423-P5D-000 2.03 mm (0.0799 in)
0 41424-P5D-000 2.06 mm (0.0811 in)
ETCHED MARK
P 41425-P5D-000 2.09 mm (0.0823 in)
eg: A1-1 +/-20
Q 41426-P5D-000 2.12 mm (0.0835 in)
R 41427-P5D-000 2.15 mm (0.0846 in)
tolerance.
S 41428-P5D-000 2.18 mm (0.0858 in)
T 41429-P5D-000 2.21 mm (0.0870 in)
U 41430-P5D-000 2.24 mm (0.0882 in)
V 41431-P5D-000 2.27 mm (0.0894 in)
Example 1:
Old shim: 2.00 mm thickness
Old pinion: +20 (0.02 mm)
New pinion: -10 (-0.01 mm)
2.00 + 0.02 + 0.01 = 2.03
Select the 2.03 mm (0.0799 in) new shim.
Example 2:
Old shim: 1.70 mm thickness
Old pinion: -10 (-0.01 mm)
New pinion: -20 (-0.02 mm)
1.70-0.01 +0.02 = 1.71
Select the 1.70 mm (0.0669 in) new shim.
