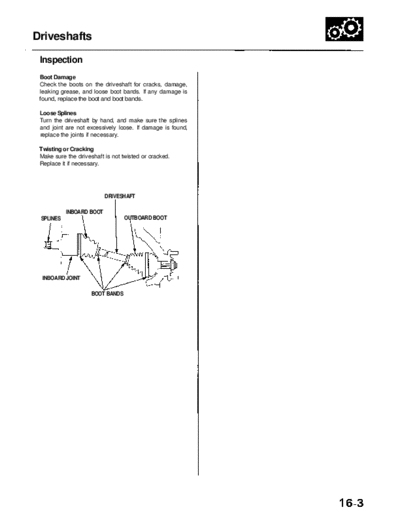

Image preview - the first page of the document
RL9604S16003A


>> Download RL9604S16003A documenatation <<

Text preview - extract from the document
               Main Menu                 Table of Contents


Driveshafts

 Inspection
 Boot Damage
 Check the boots on the driveshaft for cracks, damage,
 leaking grease, and loose boot bands. If any damage is
 found, replace the boot and boot bands.

 Loose Splines
 Turn the driveshaft by hand, and make sure the splines
 and joint are not excessively loose. If damage is found,
 replace the joints if necessary.

 Twisting or Cracking
 Make sure the driveshaft is not twisted or cracked.
 Replace it if necessary.




                           DRIVESHAFT

           INBOARD BOOT
 SPLINES                          OUTBOARD BOOT




  INBOARD JOINT

                     BOOT BANDS
