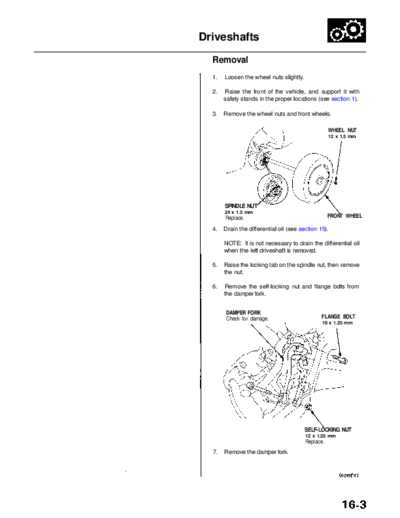

Image preview - the first page of the document



>> Download RL9604S16003B documenatation <<

Text preview - extract from the document

Main Menu   Table of Contents


                                Driveshafts

                                  Removal
                                  1.   Loosen the wheel nuts slightly.

                                  2.   Raise the front of the vehicle, and support it with
                                       safety stands in the proper locations (see section 1).

                                  3.   Remove the wheel nuts and front wheels.

                                                                                    WHEEL NUT
                                                                                    12 x 1.5 mm




                                       SPINDLE NUT
                                       24 x 1.5 mm
                                       Replace.                                     FRONT WHEEL

                                  4.   Drain the differential oil (see section 15).

                                       NOTE: It is not necessary to drain the differential oil
                                       when the left driveshaft is removed.

                                  5.   Raise the locking tab on the spindle nut, then remove
                                       the nut.

                                  6.   Remove the self-locking nut and flange bolts from
                                       the damper fork.


                                        DAMPER FORK
                                        Check for damage.                       FLANGE BOLT
                                                                                10 x 1.25 mm




                                                                         SELF-LOCKING NUT
                                                                         12 x 1.25 mm
                                                                         Replace.
                                  7.   Remove the damper fork.
              Main Menu                  Table of Contents


Driveshafts
 Removal (cont'd)
 8. Remove the cotter pin from the lower arm ball joint        12. Pull the inboard joint, and remove the driveshaft
    castle nut, and remove the nut.                                from the differential case as an assembly.

                                                                   CAUTION:
