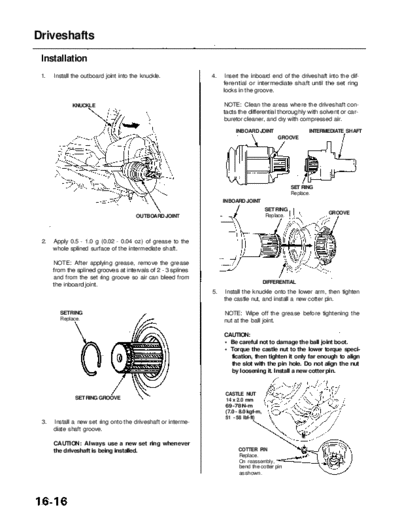

Image preview - the first page of the document
>> Download RL9604S16016A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Driveshafts
Installation
1. Install the outboard joint into the knuckle. 4. Insert the inboard end of the driveshaft into the dif-
ferential or intermediate shaft until the set ring
locks in the groove.
KNUCKLE NOTE: Clean the areas where the driveshaft con-
tacts the differential thoroughly with solvent or car-
buretor cleaner, and dry with compressed air.
INBOARD JOINT INTERMEDIATE SHAFT
GROOVE
SET RING
Replace.
INBOARD JOINT
SET RING
GROOVE
OUTBOARD JOINT Replace.
2. Apply 0.5 - 1.0 g (0.02 - 0.04 oz) of grease to the
whole splined surface of the intermediate shaft.
NOTE: After applying grease, remove the grease
from the splined grooves at intervals of 2 - 3 splines
and from the set ring groove so air can bleed from
DIFFERENTIAL
the inboard joint.
5. Install the knuckle onto the lower arm, then tighten
the castle nut, and install a new cotter pin.
SET RING NOTE: Wipe off the grease before tightening the
Replace. nut at the ball joint.
CAUTION:
