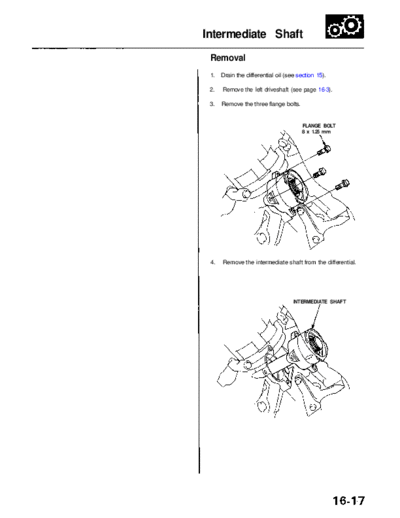

Image preview - the first page of the document
RL9604S16017A


>> Download RL9604S16017A documenatation <<

Text preview - extract from the document
Main Menu   Table of Contents


                                Intermediate Shaft
                                 Removal
                                 1. Drain the differential oil (see section 15).

                                 2.   Remove the left driveshaft (see page 16-3).

                                 3.   Remove the three flange bolts.


                                                                       FLANGE BOLT
                                                                       8 x 1.25 mm




                                 4.   Remove the intermediate shaft from the differential.




                                                                  INTERMEDIATE SHAFT
