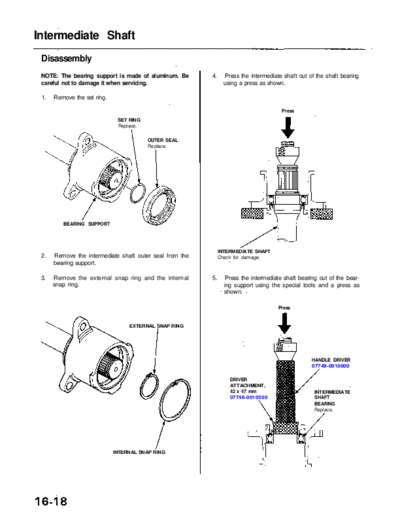

Image preview - the first page of the document



>> Download RL9604S16018A documenatation <<

Text preview - extract from the document

              Main Menu                  Table of Contents


Intermediate Shaft
 Disassembly
 NOTE: The bearing support is made of aluminum. Be           4.     Press the intermediate shaft out of the shaft bearing
 careful not to damage it when servicing.                           using a press as shown.

 1.   Remove the set ring.

                                                                                           Press
                              SET RING
                              Replace.

                                          OUTER SEAL
                                          Replace.




         BEARING SUPPORT




                                                                  INTERMEDIATE SHAFT
 2.   Remove the intermediate shaft outer seal from the           Check for damage.
      bearing support.

 3.   Remove the external snap ring and the internal         5.      Press the intermediate shaft bearing out of the bear-
      snap ring.                                                    ing support using the special tools and a press as
                                                                    shown.

                                                                                         Press


                                  EXTERNAL SNAP RING




                                                                                                      HANDLE DRIVER
                                                                                                      07749-0010000

                                                                      DRIVER
                                                                      ATTACHMENT,
                                                                      42 x 47 mm                       INTERMEDIATE
                                                                      07746-0010300                    SHAFT
                                                                                                       BEARING
                                                                                                       Replace.




                             INTERNAL SNAP RING
              Main Menu                 Table of Contents




6.   Remove the intermediate shaft inner seal from the
     bearing support.


                                 INNER SEAL
                                 Replace.


                                BEARING
                                SUPPORT
                                Check for damage.




                             O-RING
                             Replace.




7.   Remove the O-ring.
