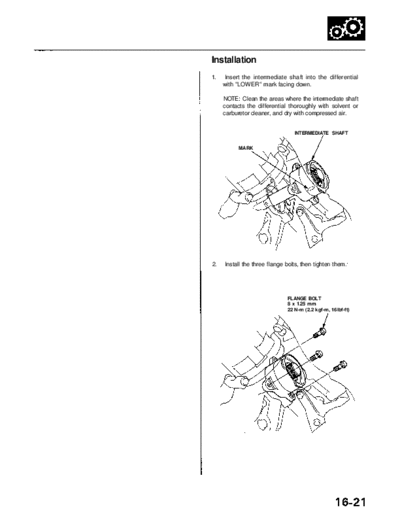

Image preview - the first page of the document



>> Download RL9604S16021A documenatation <<

Text preview - extract from the document

Main Menu   Table of Contents




                                Installation
                                1.   Insert the intermediate shaft into the differential
                                     with "LOWER" mark facing down.

                                     NOTE: Clean the areas where the intermediate shaft
                                     contacts the differential thoroughly with solvent or
                                     carburetor cleaner, and dry with compressed air.


                                                                 INTERMEDIATE SHAFT


                                           MARK




                                2.   Install the three flange bolts, then tighten them.




                                                              FLANGE BOLT
                                                              8 x 1.25 mm
                                                              22 N-m (2.2 kgf-m, 16lbf-ft)
