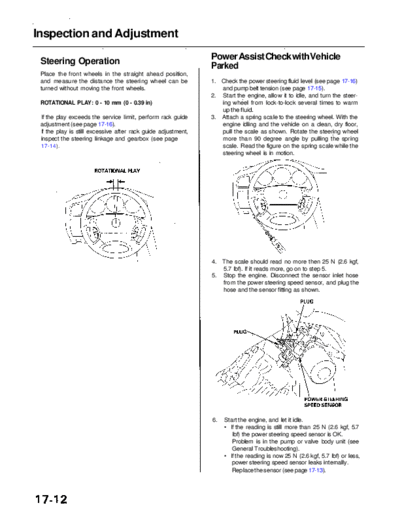

Image preview - the first page of the document



>> Download RL9604S17012A documenatation <<

Text preview - extract from the document

               Main Menu                  Table of Contents

Inspection and Adjustment

 Steering Operation                                            Power Assist Check with Vehicle
                                                               Parked
 Place the front wheels in the straight ahead position,
 and measure the distance the steering wheel can be            1. Check the power steering fluid level (see page 17-16)
 turned without moving the front wheels.                          and pump belt tension (see page 17-15).
                                                               2. Start the engine, allow it to idle, and turn the steer-
 ROTATIONAL PLAY: 0 - 10 mm (0 - 0.39 in)                         ing wheel from lock-to-lock several times to warm
                                                                  up the fluid.
 If the play exceeds the service limit, perform rack guide     3. Attach a spring scale to the steering wheel. With the
 adjustment (see page 17-16).                                     engine idling and the vehicle on a clean, dry floor,
 If the play is still excessive after rack guide adjustment,      pull the scale as shown. Rotate the steering wheel
 inspect the steering linkage and gearbox (see page               more than 90 degree angle by pulling the spring
 17-14).                                                          scale. Read the figure on the spring scale while the
                                                                  steering wheel is in motion.




                                                               4.   The scale should read no more then 25 N (2.6 kgf,
                                                                    5.7 Ibf). If it reads more, go on to step 5.
                                                               5.   Stop the engine. Disconnect the sensor inlet hose
                                                                    from the power steering speed sensor, and plug the
                                                                    hose and the sensor fitting as shown.




                                                               6.   Start the engine, and let it idle.
