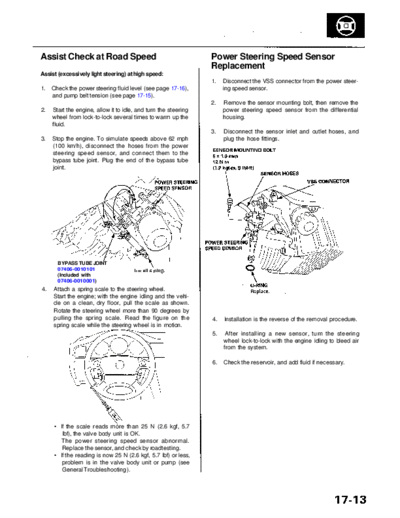

Image preview - the first page of the document



>> Download RL9604S17013A documenatation <<

Text preview - extract from the document

               Main Menu                   Table of Contents




Assist Check at Road Speed                                       Power Steering Speed Sensor
                                                                 Replacement
Assist (excessively light steering) at high speed:
                                                                 1.   Disconnect the VSS connector from the power steer-
1.   Check the power steering fluid level (see page 17-16),           ing speed sensor.
     and pump belt tension (see page 17-15).
                                                                 2.   Remove the sensor mounting bolt, then remove the
2.   Start the engine, allow it to idle, and turn the steering        power steering speed sensor from the differential
     wheel from lock-to-lock several times to warm up the             housing.
     fluid.
                                                                 3.   Disconnect the sensor inlet and outlet hoses, and
3.   Stop the engine. To simulate speeds above 62 mph                 plug the hose fittings.
     (100 km/h), disconnect the hoses from the power
     steering speed sensor, and connect them to the
     bypass tube joint. Plug the end of the bypass tube
     joint.




       BYPASS TUBE JOINT
       07406-0010101
       (Included with
       07406-0010001)
4.   Attach a spring scale to the steering wheel.
     Start the engine; with the engine idling and the vehi-
     cle on a clean, dry floor, pull the scale as shown.
     Rotate the steering wheel more than 90 degrees by
     pulling the spring scale. Read the figure on the            4.   Installation is the reverse of the removal procedure.
     spring scale while the steering wheel is in motion.
                                                                 5.    After installing a new sensor, turn the steering
                                                                      wheel lock-to-lock with the engine idling to bleed air
                                                                      from the system.

                                                                 6.   Check the reservoir, and add fluid if necessary.
