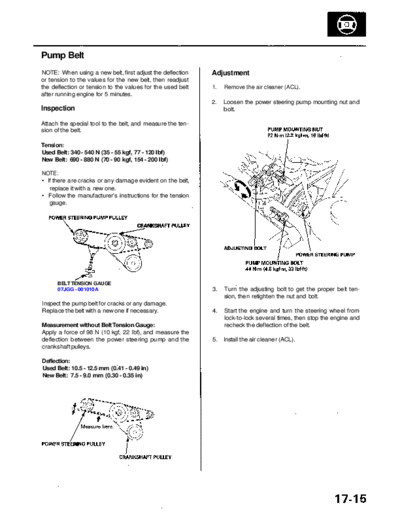

RL9604S17015A


>> Download RL9604S17015A documenatation <<

Text preview - extract from the document
              Main Menu                 Table of Contents




Pump Belt
NOTE: When using a new belt, first adjust the deflection    Adjustment
or tension to the values for the new belt, then readjust
the deflection or tension to the values for the used belt   1.   Remove the air cleaner (ACL).
after running engine for 5 minutes.
                                                            2.   Loosen the power steering pump mounting nut and
Inspection                                                       bolt.

Attach the special tool to the belt, and measure the ten-
sion of the belt.

Tension:
Used Belt: 340 - 540 N (35 - 55 kgf, 77 - 120 Ibf)
New Belt: 690 - 880 N (70 - 90 kgf, 154 - 200 Ibf)
