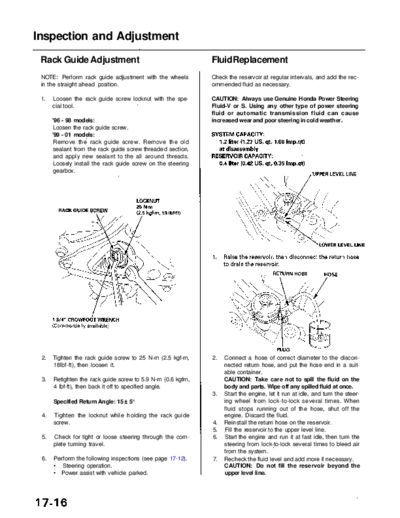

Image preview - the first page of the document



>> Download RL9604S17016A documenatation <<

Text preview - extract from the document

               Main Menu                Table of Contents


Inspection and Adjustment
 Rack Guide Adjustment                                       Fluid Replacement
 NOTE: Perform rack guide adjustment with the wheels         Check the reservoir at regular intervals, and add the rec-
 in the straight ahead position.                             ommended fluid as necessary.

 1.   Loosen the rack guide screw locknut with the spe-      CAUTION: Always use Genuine Honda Power Steering
      cial tool.                                             Fluid-V or S. Using any other type of power steering
                                                             fluid or automatic transmission fluid can cause
      '96 - 98 models:                                       increased wear and poor steering in cold weather.
      Loosen the rack guide screw.
      '99 - 01 models:
      Remove the rack guide screw. Remove the old
      sealant from the rack guide screw threaded section,
      and apply new sealant to the all around threads.
      Loosely install the rack guide screw on the steering
      gearbox.




 2.   Tighten the rack guide screw to 25 N-m (2.5 kgf-m,     2.   Connect a hose of correct diameter to the discon-
      18lbf-ft), then loosen it.                                  nected return hose, and put the hose end in a suit-
                                                                  able container.
 3.   Retighten the rack guide screw to 5.9 N-m (0.6 kgfm,        CAUTION: Take care not to spill the fluid on the
      4 Ibf-ft), then back it off to specified angle.             body and parts. Wipe off any spilled fluid at once.
                                                             3.   Start the engine, let it run at idle, and turn the steer-
      Specified Return Angle: 15
