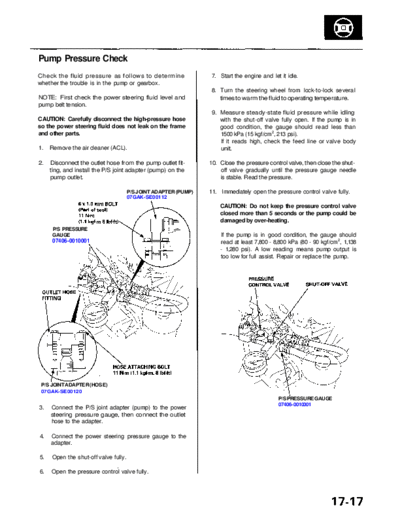

Image preview - the first page of the document



>> Download RL9604S17017A documenatation <<

Text preview - extract from the document

               Main Menu                   Table of Contents




Pump Pressure Check
Check the fluid pressure as follows to determine                 7. Start the engine and let it idle.
whether the trouble is in the pump or gearbox.
                                                                 8. Turn the steering wheel from lock-to-lock several
NOTE: First check the power steering fluid level and                times to warm the fluid to operating temperature.
pump belt tension.
                                                                 9. Measure steady-state fluid pressure while idling
CAUTION: Carefully disconnect the high-pressure hose                with the shut-off valve fully open. If the pump is in
so the power steering fluid does not leak on the frame              good condition, the gauge should read less than
and other parts.                                                    1500 kPa (15 kgf/cm2, 213 psi).
                                                                    If it reads high, check the feed line or valve body
1.   Remove the air cleaner (ACL).                                  unit.

2.   Disconnect the outlet hose from the pump outlet fit-        10. Close the pressure control valve, then close the shut-
     ting, and install the P/S joint adapter (pump) on the           off valve gradually until the pressure gauge needle
     pump outlet.                                                    is stable. Read the pressure.

                                      P/S JOINT ADAPTER (PUMP)   11. Immediately open the pressure control valve fully.
                                      07GAK-SE00112
                                                                     CAUTION: Do not keep the pressure control valve
                                                                     closed more than 5 seconds or the pump could be
                                                                     damaged by over-heating.
      P/S PRESSURE
      GAUGE                                                          If the pump is in good condition, the gauge should
      07406-0010001                                                  read at least 7,800 - 8,800 kPa (80 - 90 kgf/cm2, 1,138
                                                                     - 1,280 psi). A low reading means pump output is
                                                                     too low for full assist. Repair or replace the pump.




 P/S JOINT ADAPTER (HOSE)
 07GAK-SE00120
                                                                                            P/S PRESSURE GAUGE
                                                                                            07406-0010001
3.   Connect the P/S joint adapter (pump) to the power
     steering pressure gauge, then connect the outlet
     hose to the adapter.

4.   Connect the power steering pressure gauge to the
     adapter.

5.   Open the shut-off valve fully.

6.   Open the pressure control valve fully.
