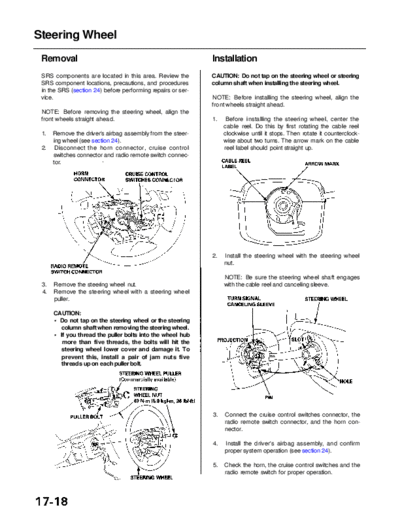

Image preview - the first page of the document



>> Download RL9604S17018A documenatation <<

Text preview - extract from the document

              Main Menu                Table of Contents


Steering Wheel
 Removal                                                     Installation
 SRS components are located in this area. Review the         CAUTION: Do not tap on the steering wheel or steering
 SRS component locations, precautions, and procedures        column shaft when installing the steering wheel.
 in the SRS (section 24) before performing repairs or ser-
 vice.                                                       NOTE: Before installing the steering wheel, align the
                                                             front wheels straight ahead.
 NOTE: Before removing the steering wheel, align the
 front wheels straight ahead.                                1.    Before installing the steering wheel, center the
                                                                  cable reel. Do this by first rotating the cable reel
 1.   Remove the driver's airbag assembly from the steer-         clockwise until it stops. Then rotate it counterclock-
      ing wheel (see section 24).                                 wise about two turns. The arrow mark on the cable
 2.    Disconnect the horn connector, cruise control              reel label should point straight up.
      switches connector and radio remote switch connec-
      tor.




                                                             2.   Install the steering wheel with the steering wheel
                                                                  nut.

                                                                  NOTE: Be sure the steering wheel shaft engages
 3.   Remove the steering wheel nut.                              with the cable reel and canceling sleeve.
 4.   Remove the steering wheel with a steering wheel
      puller.

      CAUTION:
