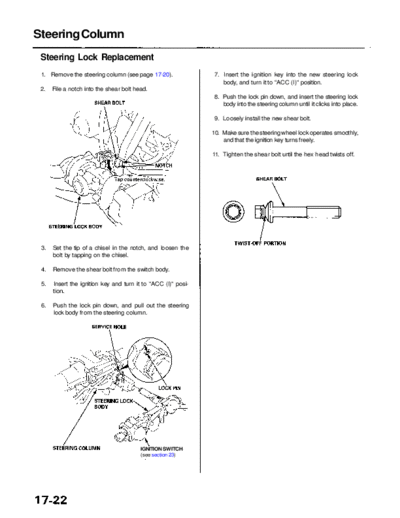

Image preview - the first page of the document
>> Download RL9604S17022A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Steering Column
Steering Lock Replacement
1. Remove the steering column (see page 17-20). 7. Insert the ignition key into the new steering lock
body, and turn it to "ACC (I)" position.
2. File a notch into the shear bolt head.
8. Push the lock pin down, and insert the steering lock
body into the steering column until it clicks into place.
9. Loosely install the new shear bolt.
10. Make sure the steering wheel lock operates smoothly,
and that the ignition key turns freely.
11. Tighten the shear bolt until the hex head twists off.
3. Set the tip of a chisel in the notch, and loosen the
bolt by tapping on the chisel.
4. Remove the shear bolt from the switch body.
5. Insert the ignition key and turn it to "ACC (I)" posi-
tion.
6. Push the lock pin down, and pull out the steering
lock body from the steering column.
IGNITION SWITCH
(see section 23)
