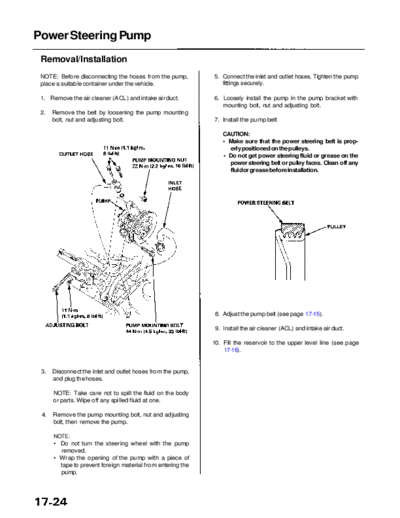

Image preview - the first page of the document
RL9604S17024A


>> Download RL9604S17024A documenatation <<

Text preview - extract from the document
               Main Menu                Table of Contents


Power Steering Pump
 Removal/Installation
 NOTE: Before disconnecting the hoses from the pump,         5. Connect the inlet and outlet hoses. Tighten the pump
 place a suitable container under the vehicle.                  fittings securely.

 1. Remove the air cleaner (ACL) and intake air duct.        6. Loosely install the pump in the pump bracket with
                                                                mounting bolt, nut and adjusting bolt.
 2.   Remove the belt by loosening the pump mounting
      bolt, nut and adjusting bolt.                          7. Install the pump belt

                                                                 CAUTION:
